| Quantity: | |
|---|---|
SP 65-180
Haisi
| Extruder Model | SP-65/180 | Capacity | 600-700kg/h |
| Twin screw extruder | TSE-65B | Pelletizing system | water ring |
| Application | 80%-85% filler PE/PP masterabtch | Customer Code | India 163 |
| Advantage | Higher production, fuller granules shape | ||
Technical data for reference:
| Model | Screw diameter | L/D | Rotary rate | Motor power | Output | |
| SP50-120 | TSE50 | 50.5mm | 24-48 | 500r/min | 37-45kw | 150-300kg/h |
| SJ120 | 120mm | 7-20 | 65-85r/min | 30-37kw | ||
| SP65-150 | TSE65 | 62.4mm | 24-48 | 400-500r/min | 55-75kw | 200-500kg/h |
| SJ150 | 150mm | 7-20 | 65-85r/min | 37-45kw | ||
| SP75-180 | TSE75 | 71mm | 24-48 | 400-500r/min | 90-110kw | 300-600kg/h |
| SJ180 | 180mm | 7-20 | 65-85r/min | 45-55kw | ||
| SP95-200 | TSE95 | 93mm | 24-48 | 300r/min | 160-220kw | 500-1000kg/h |
| SJ200 | 200mm | 7-20 | 85r/min | 90-110kw |

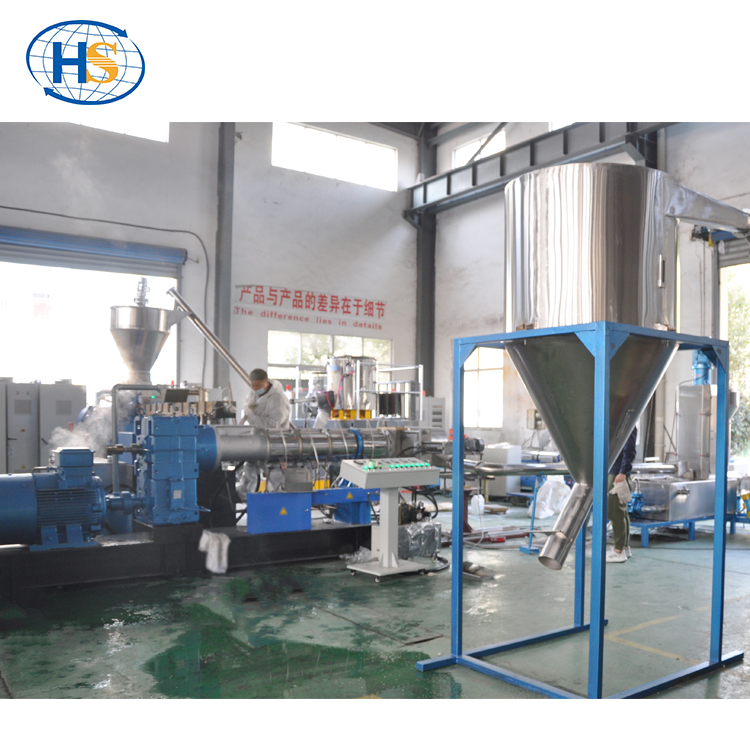

Processing of two stage extruders water ring pelletizing line
Compared with air cooling pelletizing line, water ring pelletizing line is less dusty, more environmentally friendly and more efficient.

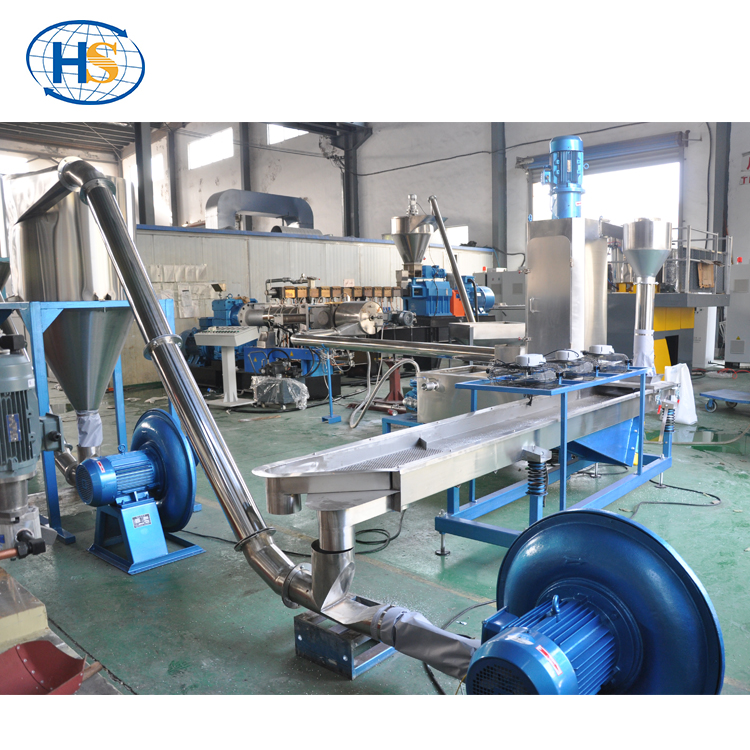

Processing of two stage extruders air cooling pelletizing line
| Extruder Model | SP-65/180 | Capacity | 600-700kg/h |
| Twin screw extruder | TSE-65B | Pelletizing system | water ring |
| Application | 80%-85% filler PE/PP masterabtch | Customer Code | India 163 |
| Advantage | Higher production, fuller granules shape | ||
Technical data for reference:
| Model | Screw diameter | L/D | Rotary rate | Motor power | Output | |
| SP50-120 | TSE50 | 50.5mm | 24-48 | 500r/min | 37-45kw | 150-300kg/h |
| SJ120 | 120mm | 7-20 | 65-85r/min | 30-37kw | ||
| SP65-150 | TSE65 | 62.4mm | 24-48 | 400-500r/min | 55-75kw | 200-500kg/h |
| SJ150 | 150mm | 7-20 | 65-85r/min | 37-45kw | ||
| SP75-180 | TSE75 | 71mm | 24-48 | 400-500r/min | 90-110kw | 300-600kg/h |
| SJ180 | 180mm | 7-20 | 65-85r/min | 45-55kw | ||
| SP95-200 | TSE95 | 93mm | 24-48 | 300r/min | 160-220kw | 500-1000kg/h |
| SJ200 | 200mm | 7-20 | 85r/min | 90-110kw |
Processing of two stage extruders water ring pelletizing line
Compared with air cooling pelletizing line, water ring pelletizing line is less dusty, more environmentally friendly and more efficient.
Processing of two stage extruders air cooling pelletizing line
