TSE-75D
HS
Advantage of Haisi TSE series engineering plastic extruder
Engineering plastic is sensitive to over heating and hydrolytic degradation. Our engineering plastic extruder is specially designed with higher torque and faster rotating speed, which can get higher output with less residence time, better dispersion, more accurate temperature control.
Haisi Extrusion Equipment Co.Ltd. provides different models of engineering plastic extruder, such as laboratory use twin screw extruder, batch production twin screw extruder, to meet various needs of customers.
Technical parameters of engineering plastic extruder
Mode | Diameter (mm) | L/D | speed (r/min) | Motor power (kw) | Capacity (kg/h) |
TSE-65D | 62.6 | 48 | 600-900 | 160-250 | 600-800 |
TSE-75D | 71.2 | 48 | 600-900 | 250-315 | 800-1000 |
TSE-95D | 93 | 48 | 600-900 | 315-750 | 1000-1800 |
Application of engineering plastics:
High-filled and reinforced compounds
Alloying, coloring
Long glass fiber compounds
Mixing of wood fibers into thermosplastics
Recycling of PET bottles or PA fiber waste
Haisi Extrusion supply complete equipments in the engineering plastic production line, including plastic mixer, plastic loading machine, plastic feeding machine, pelletizing system and cooling system. We ensure customers getting greatest possible economy and highest product quality with our engineering plastic extruder.

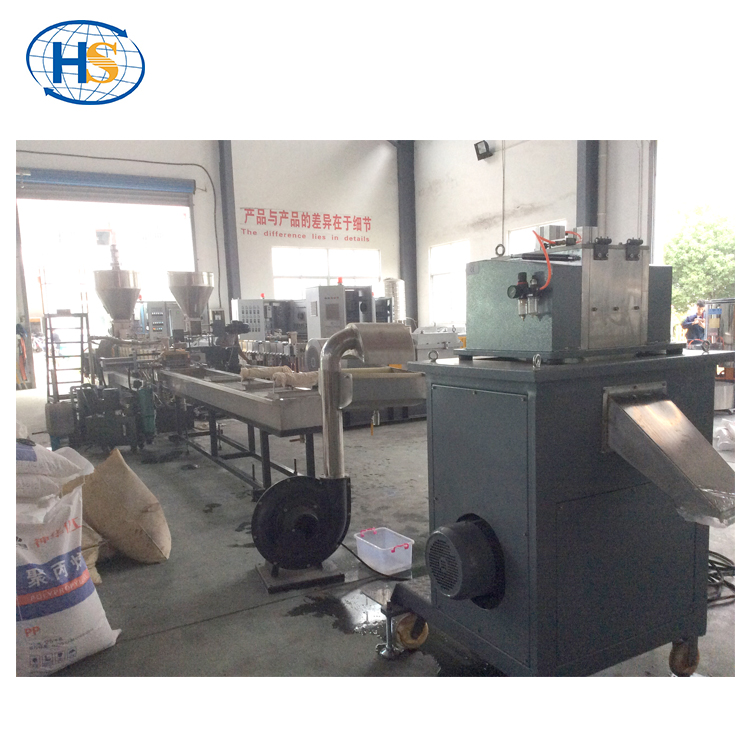

Strand pelletizing line with engineering plastic extruder
1. high speed mixer 2. loader 3. main feeder 4. side feeder 5. long glass fiber 6. twin screw extruder 7. water bath 8. air knife 9. strand pelletizer 10. silo
PROJECT: LGF compounding engineering plastic extruder for Indian customer
PROJECT: Glass fiber reinforcement engineering plastic extruder test running
Underwater pelletizing line with engineering plastic extruder
PROJECT: PP+GF engineering plastic extruder for Czech customer
Characteristics of Haisi TSE engineering plastic extruder
Our machine use innovated design of heater tightened style, it insures high efficiency of heat transfer and high longevity of heater.
Our plastic extrusion machine has Various modes of pelletizing, such as water-cooling strand machine, air-cooling pelletizing machine, water-ring pelletizing machine, under water pelletizing machine etc.
The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high functions
The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.
Nanjing Haisi Extrusion is a professional manufacturer of twin screw extruder. Any interest in the engineering plastic extruder, please feel free to contact us. We also have substantial experience in R&D, technique and after sales service. And for some material, we supply turn-key project.
