Plastic Recycling Granulating Production Line

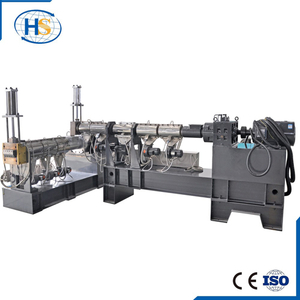

Two stage single screw extruder for waste plastic recycling
Equipped with washing crushing and pelletizing system
Availability:
Quantity:
  • HMS

  • Haisi

1-白底主图





Introduction of plastic recycle pelletizing machine:

Plastic recycling granulator machine mainly for PP, PE plastic film (PP/PE film, PP/PE plastic bags, PE plastic film mulching films shed, PP woven bag, cement bags, PP nonwoven) crushed to granulation , make plastic pellet full, even and without porosity, suitable for all kinds of waste plastic regeneration granulation recycling.
For waste pp/pe plastic film, plastic bottle and others, we strongly suggest you our HMS series two stage single screw plastic recycling extruder.

2-物料图

Technical Data of our plastic recycle extruder:

Mode

Diameter

L/D

Motor power

Screen Changer

Capacity

SJ-100

100mm

20-32

30-70kw

Hydraulic

120-200kg/h

SJ-120

120mm

20-32

37-45kw

Hydraulic

200-300kg/h

SJ-150

150mm

20-32

55-75kw

Hydraulic

250-350kg/h

SJ-180

180mm

20-32

75-90kw

Hydraulic

300-450kg/h

SJ-200

200mm

20-32

110-160kw

Hydraulic

500-800kg/h



Raw material:

If your material are like these, and you do not want to spend too much on the recycle machine. our plastic recycling extrusion machine is your good choice!

3-材料图


According to the cleanliness of raw materials and actual production needs, plastic recycling twin screw extruder with water ring pelletizing or strand pelletizing can be selected to match different raw materials.

4-单螺杆白底图


Plastic recycling granulating production line
The line with belt conveyer, crusher, extruder, auxiliary equipment. The line with characteristics of high output, low energy dissipation, labor-force saving, and high quality pellets, is an ideal equipment for film recycling and granulating line.

5-拼图
