1. The Resin Purging Method
The resin purging method is the most widely adopted cleaning technique in the plastic pelletizing industry. It utilizes transition resins (like PET or HDPE) or specialized commercial purging compounds (CPCs) to clean the machine. It is especially ideal for initial startup cleaning of new equipment or routine color and material changeovers.
Working Principle
The core mechanism relies on the purging resin remaining in a highly viscous melt state to physically displace and chemically interact with the residues inside the barrel. Through strong mechanical shear and interfacial peeling, the compound progressively drags contaminants off the screw flights and barrel walls. The purging is considered complete when the extrudate entirely transitions to the clean color of the purging material.
Standard Operating Procedure (SOP)
Close the feed slide gate and empty the main hopper.
Reduce the screw speed to 15–25 rpm and maintain this speed until the melt flow at the die face completely stops.
Set the temperature of all barrel heating zones to 200°C (or the recommended temperature for the specific purging compound).
Introduce the purging compound through the main feed throat. Continue feeding until the extruded strands perfectly match the color and appearance of the virgin purging pellets.
Stop feeding, empty the remaining material from the barrel, and stop the extruder motor.
Open the die head, briefly rotate the screw to push out the breaker plate, and discharge any residual purging material from the front of the barrel.
Main Limitations
If standard production resins are used instead of specialized commercial purging compounds, the cleaning power is often insufficient, leading to wasted raw material. Furthermore, standard resins struggle to thoroughly remove stubborn, heavily carbonized polymer buildup. While specialty CPCs offer much better peeling and softening mechanisms, their ultimate effectiveness still depends heavily on proper parameter settings and the internal wear condition of the extruder.
2. The Burn-Off (Fire Roasting) Cleaning Method
Burn-off cleaning is a traditional technique that uses a high-temperature open flame to directly eradicate stubborn plastic residues from the screw surface. It remains highly common in compounding facilities, particularly for dealing with severely solidified or cross-linked polymers.
Working Principle
A high-temperature flame is applied to instantly heat the solidified plastic adhering to the screw. The intense heat rapidly breaks down the polymer's molecular structure, causing it to carbonize, decompose, and detach from the metal substrate. This turns stubborn, sticky residues into brittle ash that can be easily brushed away.
Core Operating Guidelines
Timing is Everything: Begin cleaning immediately after pulling the screw while it still retains residual processing heat. This ensures a more uniform heat distribution.
Strict Temperature Control: Use a standard propane blowtorch for heating. Avoid excessive, concentrated heat to prevent metallurgical damage.
Keep the Flame Moving: Continuously sweep the flame back and forth along the screw flight. Ensure the entire section heats evenly to prevent localized hot spots.
Critical Safety Warnings
NEVER Use an Acetylene Torch: Acetylene flames can reach up to 3000°C. This extreme heat will permanently destroy the screw's metallurgical properties (annealing the metal) and ruin its precise mechanical tolerances.
Watch for Metal Discoloration: If the flame causes the steel to turn a persistent blue hue, the metal's crystalline structure has been altered, drastically reducing the screw's future wear resistance.
Prevent Screw Bending: Heating one side of the screw shaft too intensely will cause uneven thermal expansion, leading to permanent bowing or warping of the screw shaft.
3. The Hydro-Cleaning (Water Wash) Method
Hydro-cleaning utilizes the kinetic energy of rotating high-pressure water jets to achieve comprehensive screw cleaning. It is a modern, highly efficient, and environmentally friendly solution tailored for facilities with strict cleanliness and safety standards.
Working Principle
Fully automated screw washing machines precisely control water pressure, temperature, and flow rate. Utilizing the kinetic force of rotating water jets—combined with the counter-rotation of the screw itself—the system achieves a 360-degree, blind-spot-free mechanical stripping action. The high-pressure water shatters and flushes away various polymer residues without inflicting any thermal or physical stress on the steel.
Key Technical Advantages
Comprehensive Cleaning: The rotating water jets penetrate every crevice and complex geometry of the screw, ensuring no dead zones are left uncleaned.
Total Equipment Protection: Unlike fire cleaning or abrasive wire brushing, water jetting cannot scratch or anneal the base metal, perfectly preserving the screw's mechanical properties and tight tolerances.
High Efficiency: The automated process requires significantly less downtime, forcefully stripping away a wide variety of polymer types quickly.
Environmentally Safe: Using water as the sole cleaning medium eliminates toxic chemical fumes and hazardous smoke, dramatically improving the health and safety of the factory floor.
Main Limitations
The primary drawback of the hydro-cleaning method is its occasional inability to completely eradicate the most severely baked-on, carbonized resins. Additionally, in the highly complex, tight intermeshing zones of co-rotating twin screws, the water jets may struggle to generate enough direct impact force, potentially leaving microscopic residues in the narrowest clearances.
Conclusion
Selecting the optimal extruder screw cleaning method requires balancing material characteristics, equipment status, quality requirements, and operational costs. In practical compounding environments, the best results are often achieved by combining these methods—such as using a resin purge for standard changeovers, reserving hydro-cleaning for regular deep maintenance, and carefully employing burn-off techniques only when extracting completely seized screws. Implementing a strict cleaning protocol is the most direct way to eliminate cross-contamination and guarantee the long-term stability of your plastic pellets.

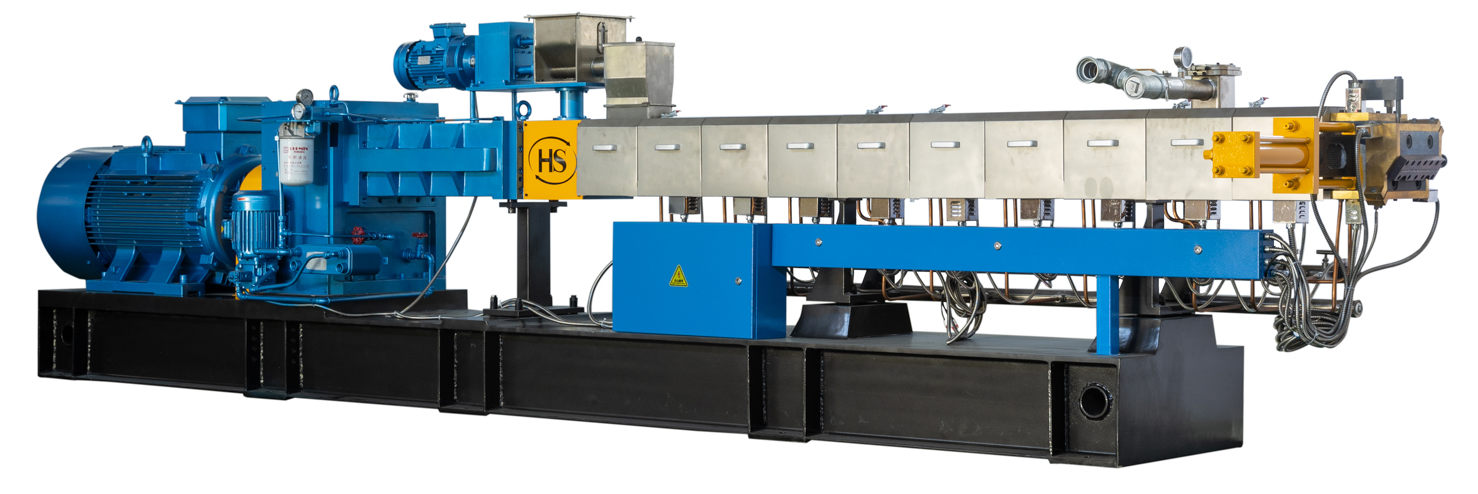

NANJING HAISI is professional manufacturer of Plastic Extruder Machine, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Extruder, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
