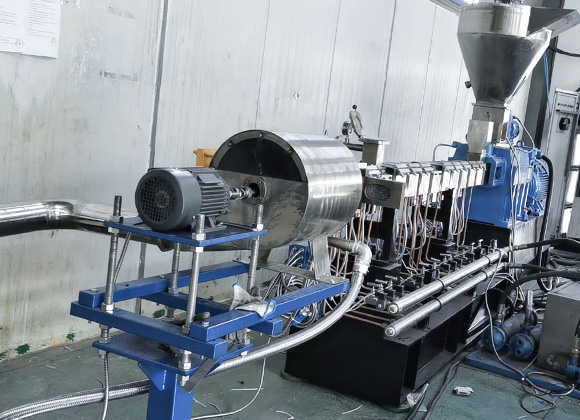

Air-Cooling Extruders

1, Metering Feeder; 2, Extruder; 3, Pelletizer; 4, Cyclone; 5, Vibrating Screen;

Applications:

Enforcing modification: PE, EVA etc. +CaCO3, Talc, TiO2, Carbon black.

Degradable master batch: PE, PS etc. +starch, additive etc.

Anti-flame master batch: PE, EVA etc. +Sb2O3, Mg (OH)2, Al2 (OH)3 etc.

Two Stage Air-Cooling Extruders

1, Metering Feeder; 2, Vertical Forcing Feeder; 3, Twin Screw Extruder;

4, Single Screw Extruder; 5, Air-Cooling Pelletizer; 6, Cyclone; 7.Boiling Bed;

Features: Combine the high speed and extensive mixing of processing and the

low speed, low temperature, and low shear of single screw processing;

Ideal for compounding of heat-and shear-sensitive materials

Applications: PVC compounds for cable, shoe sole, transparent container, and

medical applications EVA shield cable compounds; Carbon black

materbatches of PE, EVA, etc.

Two Stage Extruders For XLPE

1, Silo for PE; 2, Silo; 3, Liquid Tank; 4, Loss Weight Feeder; 5, Loss Weight Liquid Injection; 6, Twin Screw Extruder; 7, Single Screw Extruder; 8, Eccentric Water-spray Pelletzier;

9, Centrifugal Dewaterer; 10, Boiling Bed; 11, Silo; 12, Automatic Packer.

Applications:

This is another application of Tandem Line. Together with special low

pressure and short channel die as well as eccentric die-face cutting techn-

ology, the tandem line is capable of effectively mixing/compounding PE resins, antioxidants, and peroxides etc. at a low temperature, to minimize

premature, crosslinking of polyethylene.

Twin Screw Extruders After Devolatilization

1, Reactor; 2, Metering Feeder; 3, Condensator; 4, Twin screw extruder with multi-venting; 5, Twin Screw Extruder; 6, Carrier Injector; 7, Water Tank; 8, Air-knife;

9, Pelletizer; 10, Silo; 11, Packer;

Applications:

High-volume degassing/venting of unreacted monomers, oligomers, and

solvents in polymerization post-processing of CPE, CPP, CSPE, CBS, K-

resins, EVA, PMMA, ABS, POM, PS, PC, polybutadiene rubber, etc.

Strand Extruders for Filling, Compounding and Reinforcing

1. High Speed Mixer 2. Loader 3. Main Feeder 4. Side Feeder 5. Long Glass Fiber 6.Twin Screw Extruder 7. Water Tank 8. Air knife 9. Pelletizer 10. Silo

Applications:

Fiber Reinforcement: glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, etc.

Polymer Blending: blending of PC/ABS, PA/ABS, CPE/ABS, PP/EPDM, PA/EPDM, PP/SBS, etc.

Incorporation of Fillers: CaCO3, Talc, TiO2, carbon black filled PE, PP, or EVA etc.

Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-

crosslinkable compounds, optical fiber protection compounds, heat-shrinkable polymer compounds.

Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc. High Concentration Color Masterbatches: PP, PA, ABS, EVA,

PBT,etc.with high concentration of pigments and other processing aids.

Masterbatches with Flame-Retardants: PE, ABS, PS, EVA, PET, PP etc.with flame retardants and other additives Special Functional Masterbatches: Masterbatches with anti-static,

anti-bacteria, or other special functional fillers

Masterbatches for Degradable Polymers: PP, PE, PS, etc, blended with high concentration of starch and other processing aids.

Water Ring Extruders for Filling, Compounding, Modificating

1, High Speed Mixer; 2, Main Feeder; 3, Side Feeder; 4, Twin Screw Extruder;

5, Water Ring Pelletizer; 6, Centrifugal Dewaterer; 7, Vibrating Screen; 8, Silo;

Applications:

PE, EVA etc. filled with CaCO3, talc, TiO2, carbon black etc.

Cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, or MDPE;

Radiation-crosslinkable, heat-shrinkable cable compounds;

PPR pipe compounds, PE compounds for crosslinked pipes;

TPR, TPU thermoplastic elastomers; EVA and hot-melt adhesives;

Color concentrations of PE, ABS, PS, EVA, etc;

Flame retardant masterbatches of ABS, PS, EVA, etc;

Masterbatches with PE, PP, PS, etc carriers for degradation applications.

Reaction Extruders

1, Loss Weight Feeder; 2, Supplying Silo; 3, Mixer; 4, Main Extruder;

5, Vacuum Station; 6, Screen Exchanger; 7, Underwater Pelletizer;

8, Centrifugal Dewaterer; 9, Vibrating Screen; 10, Silo.

Applications:

Intensive heat and mass transfer ability, narrow residence time distribution,

large surface to volume ratio, continuous operation, ideal for high viscosity,

high temperature reaction systems.Continuous polymerization or reactive

extrusion like dynamic vulcanization, crosslinking, grafting, and chain exte-

nsion of PUR, PA, POM, PEI, PC, PMMA, PBT, PPS, etc.
