Increasing Twin Screw Extruder Output Through Optimized Screw Configuration

In most compounding processes, the output capacity of a twin screw extruder is mainly limited by two factors:

• Available power

• Feed rate

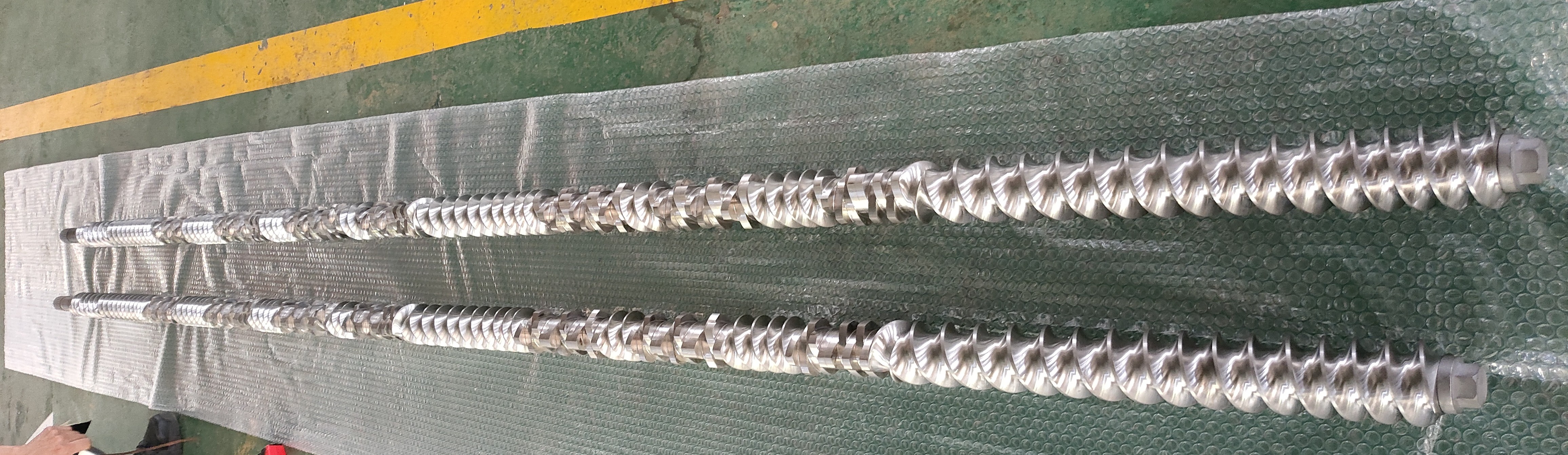

While it is difficult to change the internal volume of the extruder, production capacity can be improved by increasing the mechanical power input and enhancing conveying efficiency through optimized screw element configuration. The following strategies demonstrate how to achieve higher throughput by refining the screw design.

1. Improving Volumetric Feeding Capacity — Premixing

For highly filled materials, the feeding capacity of the first barrel section is critical. The production rate depends on how much premixed material can be introduced. After the first kneading section, the material volume drops significantly, leaving the downstream zones underfilled.

Optimization method:

Install large-pitch conveying elements between the feeding and kneading zones. This reduces fill level while maintaining screw speed, increasing overall throughput.

Key influencing factors:

• Screw diameter and L/D ratio

• Screw speed

• Screw element design

• Feed material bulk density

2. Enhancing Melting Efficiency

When output increases at constant screw speed, melting efficiency may drop. The kneading blocks must raise material temperature to the melting range, but extruder wear and increased feed can reduce melting quality.

As feed rate rises, the melting point moves toward the die, shortening plasticization time. Similarly, higher screw speeds and worn elements shift the melt zone forward.

Optimization method:

Using three-flight screw elements in the melting zone improves melting temperature and speed. This ensures that the melt temperature before side feeding remains high enough to handle additional feed without cooling issues.

3. Optimizing Side Feeding

Side feeders introduce additional powder or short fibers, but feeding performance depends on several parameters:

• Screw and side feeder diameter (ID/OD ratio)

• Screw speed

• Screw configuration

• Bulk density of material

• Melt quality before feeding

To prevent side feeding and venting issues, the material before the side feeder must be completely molten.

Optimization method:

Use large-pitch conveying elements (~2D) before the mixing zone to maintain capacity and prevent overfilling.

4. Improving Mixing Performance

Efficient mixing requires both distributive and dispersive mechanisms. Factors influencing mixing quality include:

• Type and number of mixing elements (kneading blocks, toothed elements, etc.)

• Sequence and positioning of elements

• Residence time within the mixing zone

Optimization method:

Adjust screw configuration to maximize the pressure index for better filler dispersion or minimize it to reduce fiber breakage.

5. Enhancing Pressure Build-Up and Extrusion

Inadequate pressure build-up length limits extrusion capacity. Key parameters include:

• Screw diameter and ID/OD ratio

• Pressure build-up section length

• Screw speed

• Screw element design

• Melt density

Optimization method:

Use single-flight screw elements in the pressure zone to shorten the build-up section, lower melt temperature, and stabilize vacuum venting. This also extends the screen changer’s service life.

6. Summary — Benefits of Screw Configuration Optimization

Optimizing screw combinations in each processing stage — feeding, melting, side feeding, mixing, and extrusion — can significantly:

• Increase production output

• Improve compound quality

• Enhance operating stability

• Reduce material changeover time

However, every optimization involves trade-offs between throughput, material compatibility, and processing flexibility.

With the growing variety of screw elements available today, manufacturers can experiment with different designs to fully utilize the performance of high-speed, high-torque twin screw extruders.
