Most thermoplastic elastomers (TPEs) are naturally colorless materials, ranging from milky white to nearly transparent, depending on their structure and type. This means that by adding suitable dyes or pigments, TPE materials can be colored into almost any desired shade.
Coloring Methods for Thermoplastic Elastomers
The final color quality mainly depends on how uniformly and completely the colorant is dispersed in the melt. Manufacturers use various processing techniques to achieve this. In general, TPE coloring methods can be divided into two categories: pre-coloring (pre-treatment coloring) and in-process coloring.
Pre-coloring is done before the molding or extrusion process. It provides excellent color uniformity but is more expensive and adds thermal stress to the material.
In-process coloring, as the name suggests, integrates the colorant during the actual production process. The extruder screw serves as the main melting and mixing device, dispersing pigments throughout the polymer melt.
Extrusion-Based Coloring and Equipment Considerations
Extrusion screws are not specifically designed for coloring, so equipment designers must balance production capacity, heat transfer, mixing efficiency, pressure, and cost. Process conditions should optimize both color dispersion and mechanical properties of the final product.
To enhance colorant mixing, screen changers or distributor nozzles may be added, though they may increase pressure loss and slightly reduce throughput. However, in-process coloring has clear advantages: it adds no extra thermal load, reduces material waste, saves energy and time, and allows fast color changes without maintaining a large color inventory.
Masterbatch and Pigment Usage in TPE Production

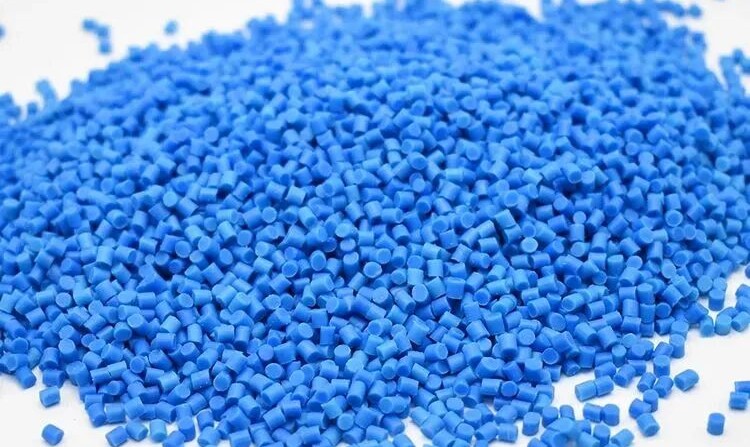

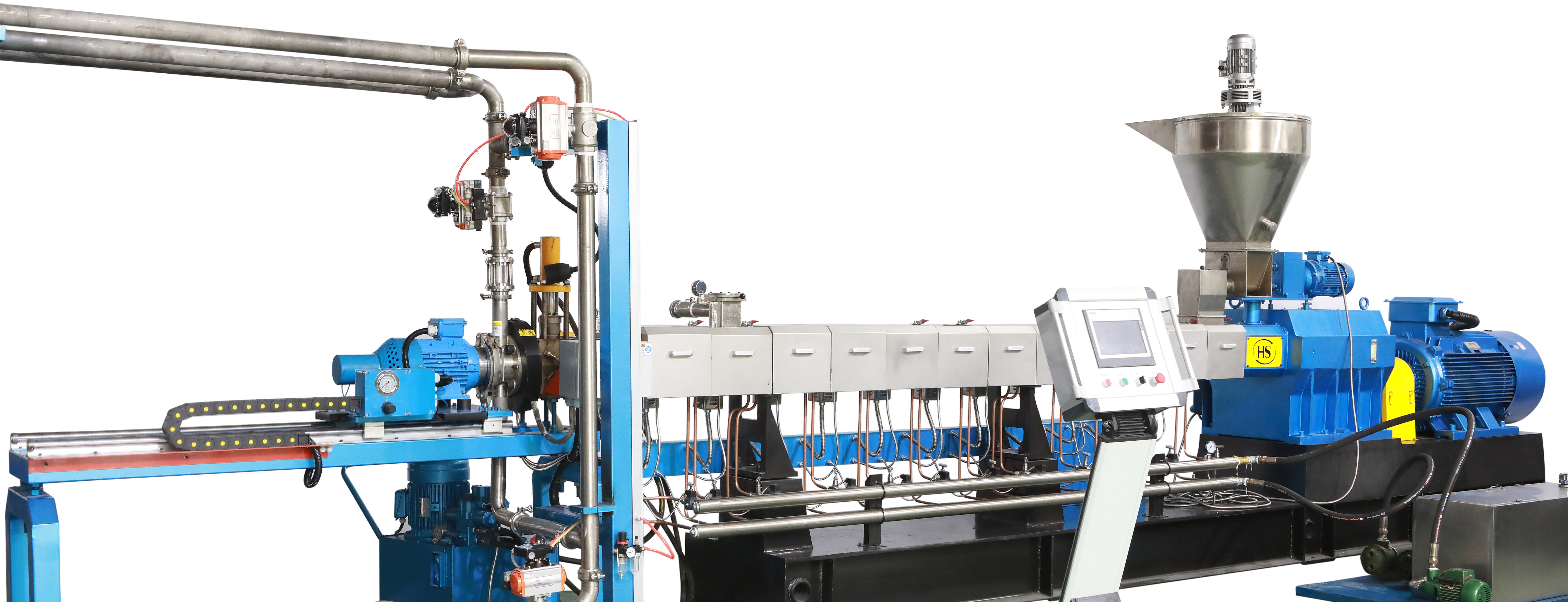

The most common in-process coloring methods use color masterbatch, liquid pigments, or dry color powders. These masterbatches are produced using professional twin-screw extruders, kneaders, or internal mixers to ensure uniform dispersion. The resulting colored pellets are then ready for injection molding, extrusion, or other processing applications.
Masterbatch combines the benefits of both pre-coloring and in-process coloring. It is a highly concentrated mixture of pigments and additives encapsulated into a carrier resin, which can be easily diluted with natural polymers during processing. Because the dispersion is mostly achieved during masterbatch production, even lower-efficiency mixing equipment can achieve uniform color distribution.
The dilution ratio—the ratio of masterbatch to base polymer—is key to cost and color performance. In TPE applications, polypropylene (PP), polyethylene (PE), polystyrene (PS), or EVA are often used as carrier resins, depending on the compatibility with the base polymer:
For SEBS + PP systems, PE or PP is typically used as the carrier.
For SBS + PS systems, EVA or PS is preferred.
For TPU or TPEE, the same polymer resin is used as the carrier to ensure compatibility.
For ultra-soft TPS, organic color powders are usually recommended.
Key Advantages and Considerations
Using color masterbatch in TPE production provides:
Excellent dispersion and consistent color quality.
Easy process control and quick color changeovers.
Minimal impact on polymer rheology and thermal stability.
Reduced heat history compared to multiple processing steps.
However, if the carrier polymer differs significantly from the base resin, it may slightly affect the mechanical or thermal properties of the finished product. Maintaining a reasonable dilution ratio can minimize this effect.
Conclusion
Color compounding for thermoplastic elastomers combines art and engineering. By optimizing extrusion screw design, process conditions, and pigment compatibility, manufacturers can achieve vibrant, uniform, and durable colored TPE pellets for diverse applications such as automotive parts, soft-touch components, seals, and consumer goods.
