Product specification
| Mode | Diameter（mm） | L/D | N(r/min) | P(kw) | T(N.m) | Q（kg/h） |
|---|---|---|---|---|---|---|
| TSE-40B | 41 | 32-52 | 600 | 45-55 | 437 | 100-160 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-350 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |

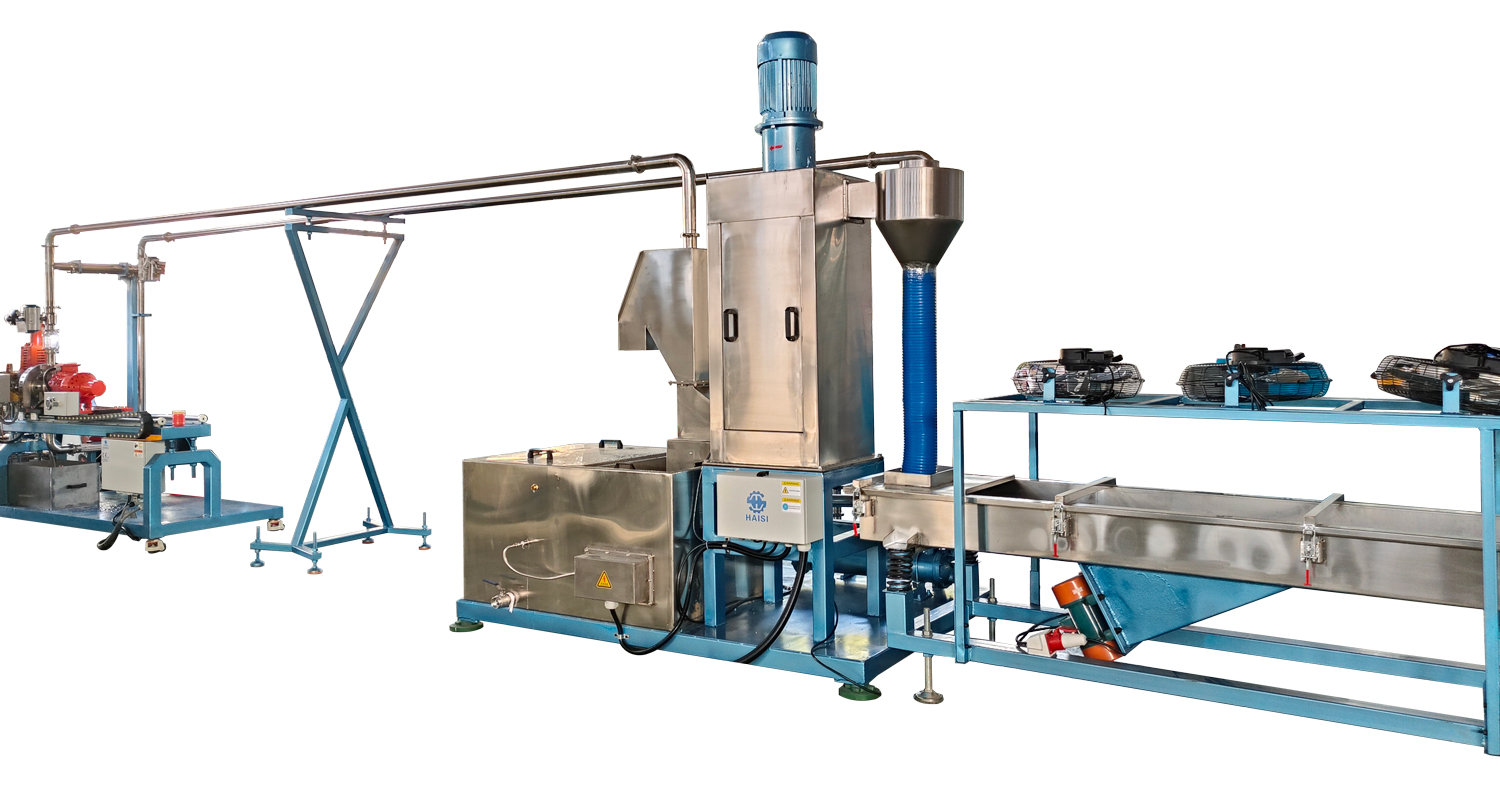

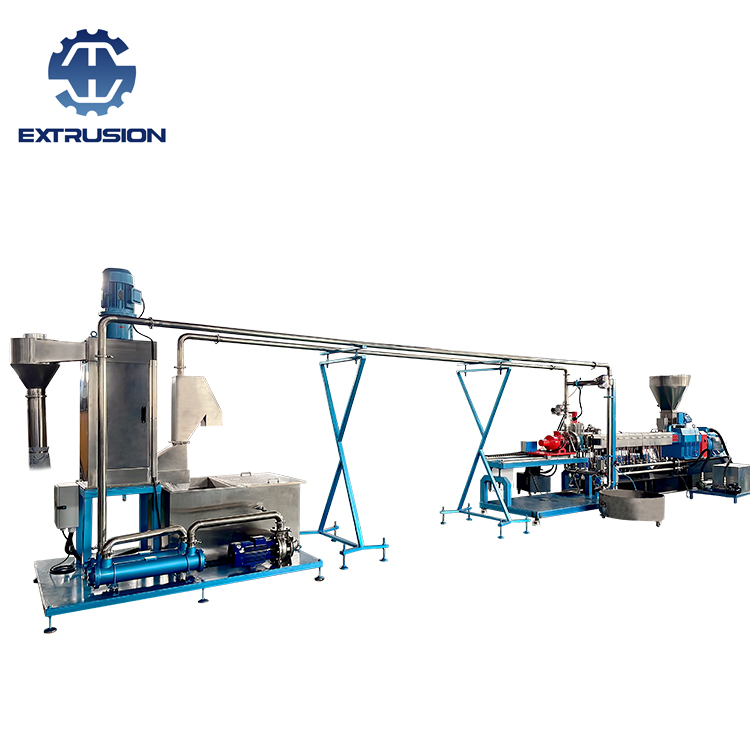

This twin screw extrusion line is specially designed for producing EVA, TPE, and TPR hot melt adhesive granules, equipped with a high-efficiency underwater pelletizing system. It ensures stable operation and high output, suitable for continuous production of various hot melt formulations. The modular design allows easy cleaning and quick recipe changes.

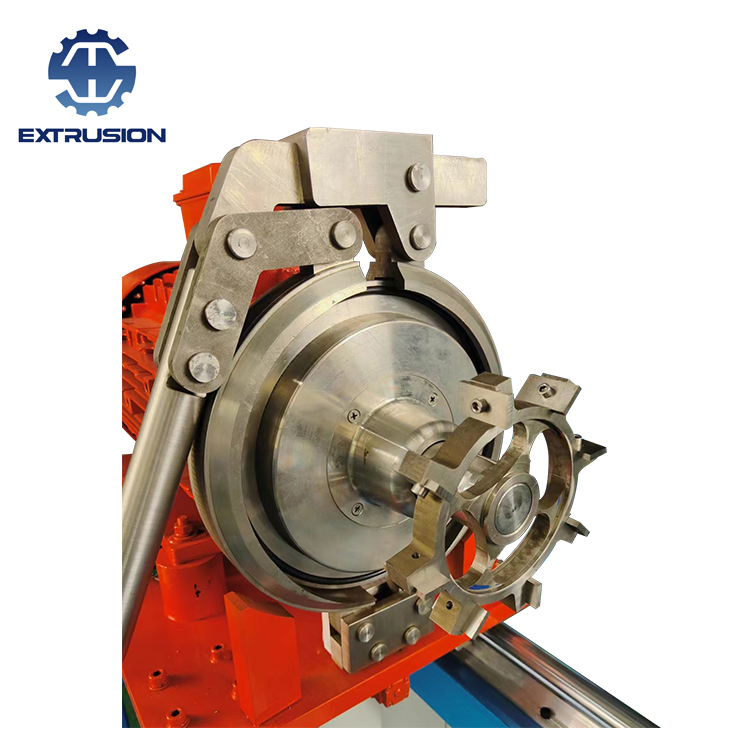

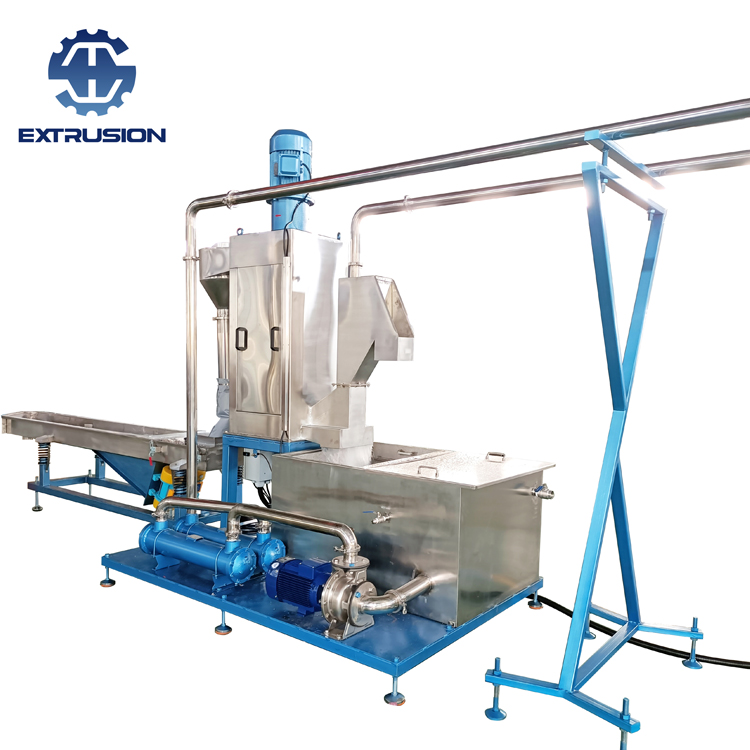

Efficient Pelletizing: Underwater pelletizing ensures uniform particle size and rapid cooling.
Excellent Mixing: Twin screw design provides thorough plasticization and uniform dispersion.
Smart Control: Equipped with a PLC automation system for easy operation and recipe management.
Ideal for producing raw materials for hot melt glue sticks, pressure-sensitive adhesives, shoe adhesives, and packaging sealants. Widely used in industries such as packaging, furniture, automotive, construction, and nonwoven fabrics.
Our hot melt granulation line has been successfully installed in countries like Egypt, Turkey, and India. One client from the Middle East uses the machine for EVA hot melt adhesive production for footwear. After over a year of operation, the equipment has been praised for its stability and productivity.
Product specification
| Mode | Diameter（mm） | L/D | N(r/min) | P(kw) | T(N.m) | Q（kg/h） |
|---|---|---|---|---|---|---|
| TSE-40B | 41 | 32-52 | 600 | 45-55 | 437 | 100-160 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-350 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
This twin screw extrusion line is specially designed for producing EVA, TPE, and TPR hot melt adhesive granules, equipped with a high-efficiency underwater pelletizing system. It ensures stable operation and high output, suitable for continuous production of various hot melt formulations. The modular design allows easy cleaning and quick recipe changes.
Efficient Pelletizing: Underwater pelletizing ensures uniform particle size and rapid cooling.
Excellent Mixing: Twin screw design provides thorough plasticization and uniform dispersion.
Smart Control: Equipped with a PLC automation system for easy operation and recipe management.
Ideal for producing raw materials for hot melt glue sticks, pressure-sensitive adhesives, shoe adhesives, and packaging sealants. Widely used in industries such as packaging, furniture, automotive, construction, and nonwoven fabrics.
Our hot melt granulation line has been successfully installed in countries like Egypt, Turkey, and India. One client from the Middle East uses the machine for EVA hot melt adhesive production for footwear. After over a year of operation, the equipment has been praised for its stability and productivity.
