TSE-30
Haisi

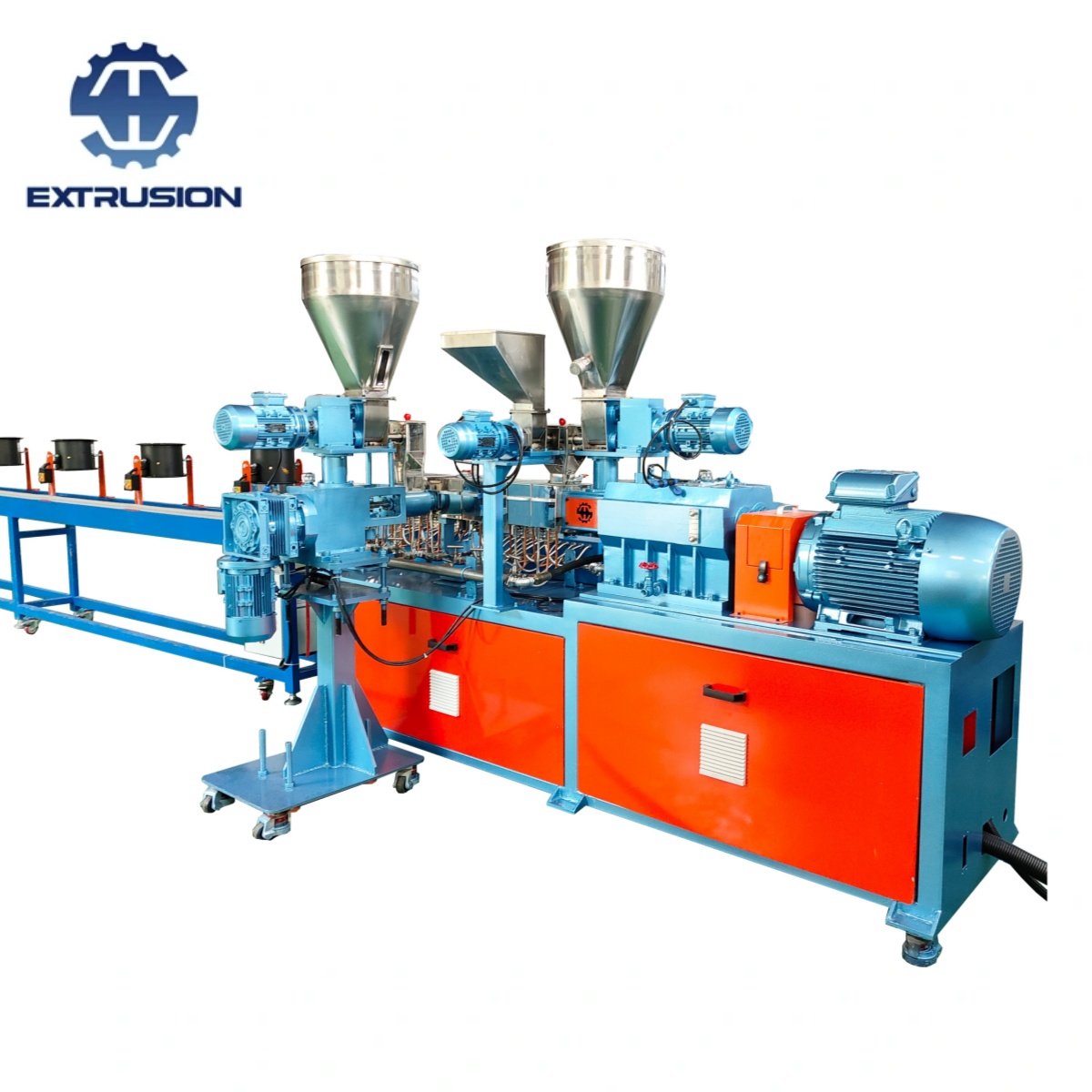

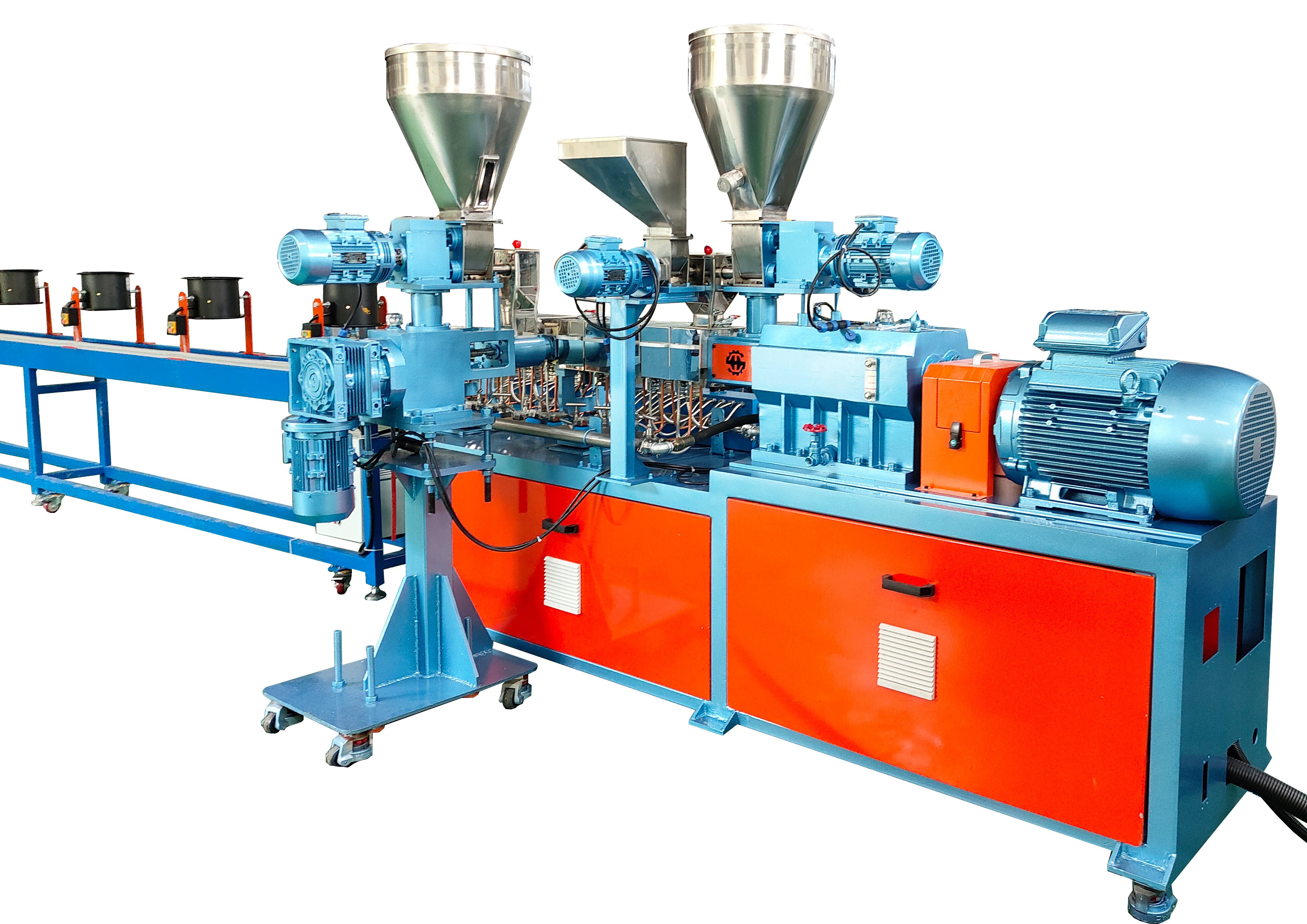

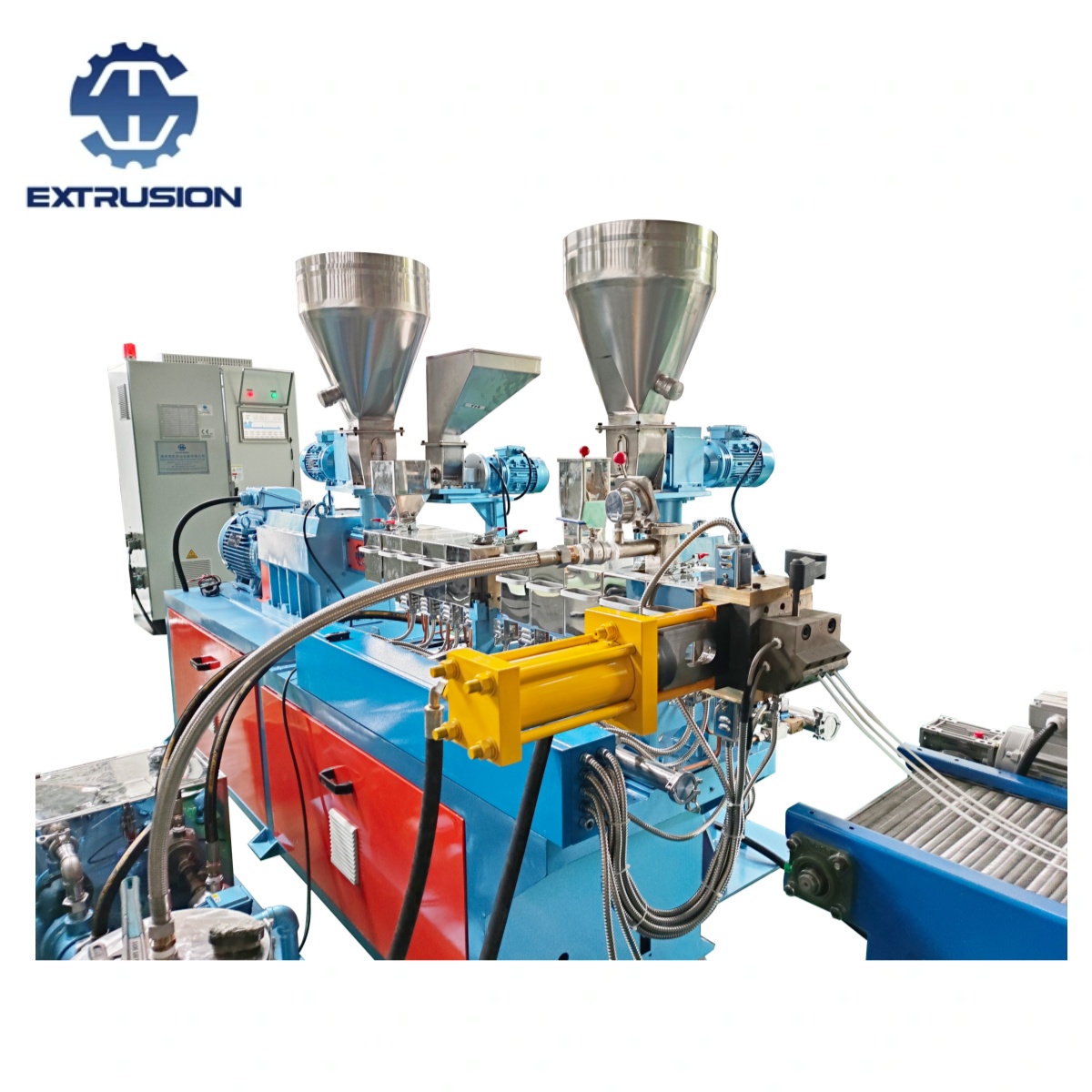

Nanjing Haisi Extrusion Equipment Co., Ltd. introduces the highly adaptable TSE-30 twin-screw compounding and pelletizing line, specifically engineered for both laboratory research and university teaching environments. This highly versatile machine is capable of processing an incredibly wide variety of polymer materials. From fundamental educational demonstrations to advanced formulation R&D, this system delivers industrial-grade precision in a compact footprint.
Ultra-Wide Output Range (1 to 30 kg/h): While a standard 30-size extruder typically operates between 5 to 30 kg/h, we have specially designed this unit to achieve an ultra-low 1 kg/h minimum output for precise micro-testing. This is achieved through a custom-engineered dual main feeder system (a combination of large and small precision feeders), ensuring absolute accuracy even at minimal feed rates.
Versatile Side Feeder Integration: The extrusion line is equipped with a dedicated side feeder. This allows researchers and students to seamlessly introduce various powder fillers, glass fibers (GF), and other shear-sensitive additives downstream into the melt, expanding the scope of composite material testing.

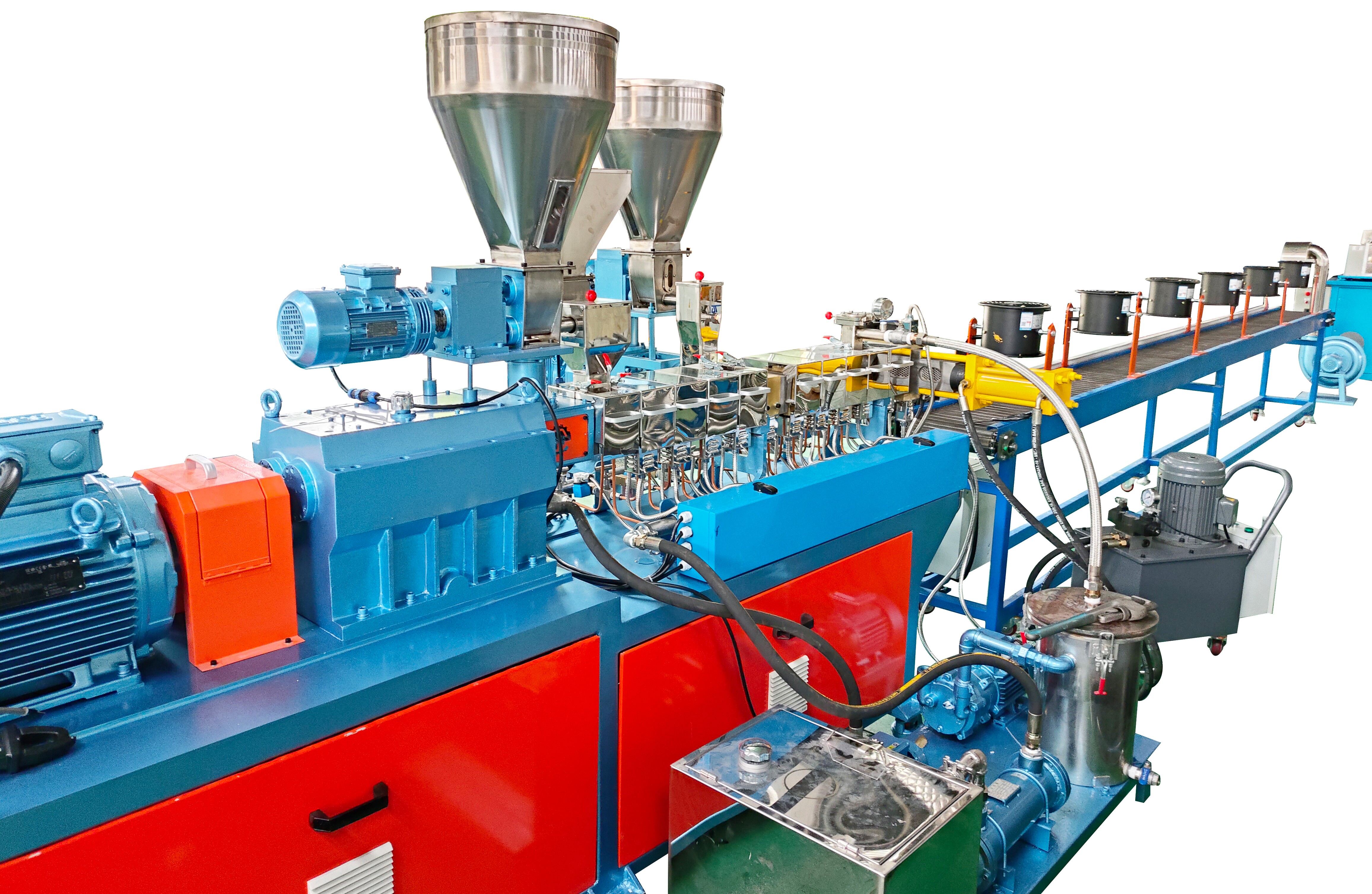

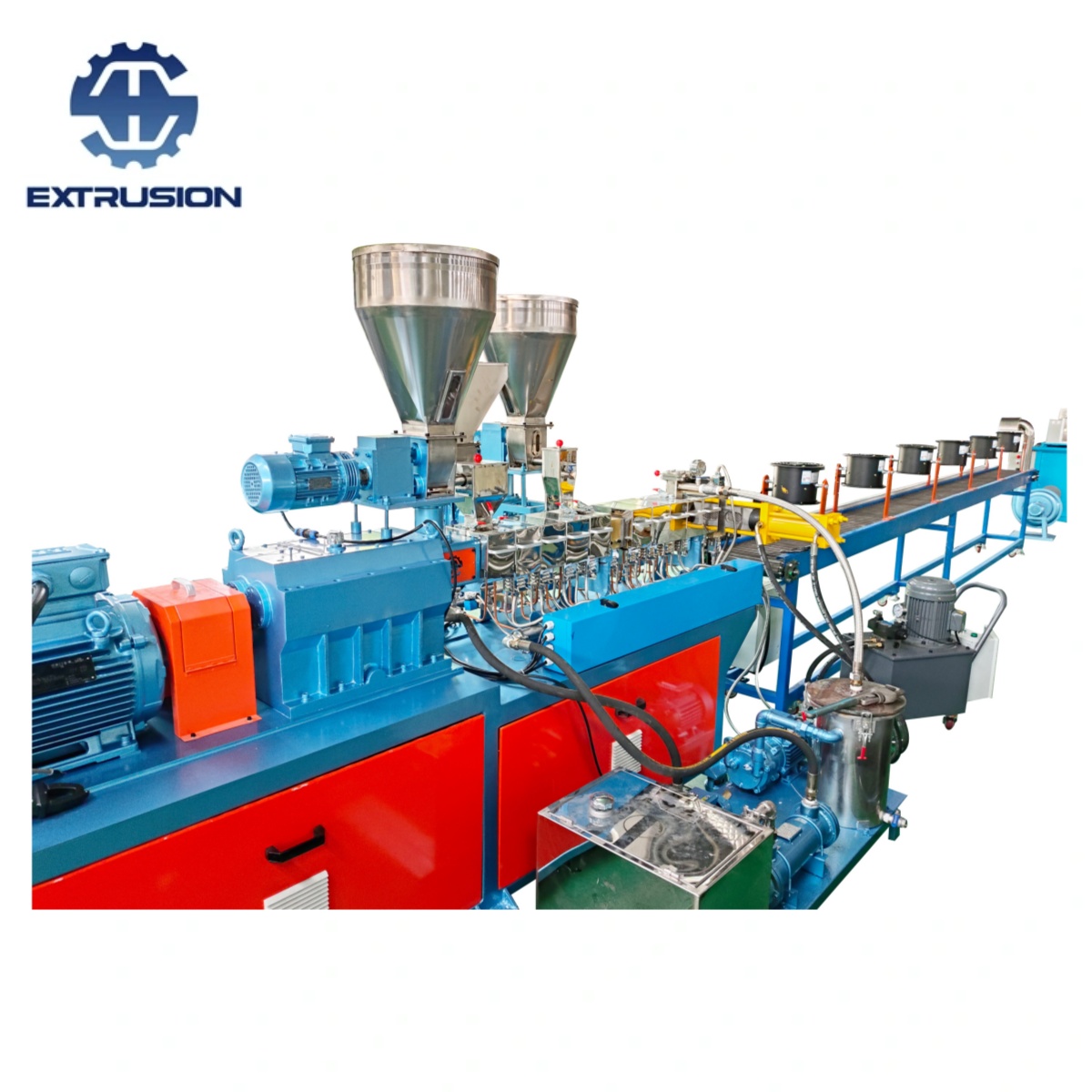

Conveyor Belt Pelletizing for Water-Sensitive Materials: To maximize experimental flexibility for all types of materials, this line features an air-cooling conveyor belt pelletizing system. For polymers and specialized compounds that cannot be processed through standard water baths, the conveyor belt provides efficient, moisture-free cooling and transport to the pelletizer.
Dual-Use Design: The intuitive control system and visible processing zones make it the perfect hands-on training equipment for university students, while maintaining the rigorous data accuracy required by professional R&D scientists.
High Formulation Flexibility: The combination of precision main feeding and side feeding means you can experiment with unlimited recipe variations, filler ratios, and reinforcement materials in a single setup.
Cost-Effective R&D: The ability to run stable tests at just 1 kg/h drastically reduces the consumption and waste of expensive experimental raw materials and special additives.
This multipurpose compounding line is ideal for:
University polymer science education and hands-on training
Glass fiber and carbon fiber reinforcement testing
Inorganic powder filling (Talc, CaCO3) modifications
Water-sensitive polymer and bioplastic compounding
General color matching and masterbatch development
A: The TSE-30 is a highly precise, compact compounding line designed specifically for laboratory research, formulation testing, and university teaching. It is the perfect tool for R&D departments to test new polymer blends, color masterbatches, and engineering plastics before moving to mass production.
A: In an R&D or teaching environment, raw materials—especially newly developed polymers or special additives—can be extremely expensive or limited in supply.

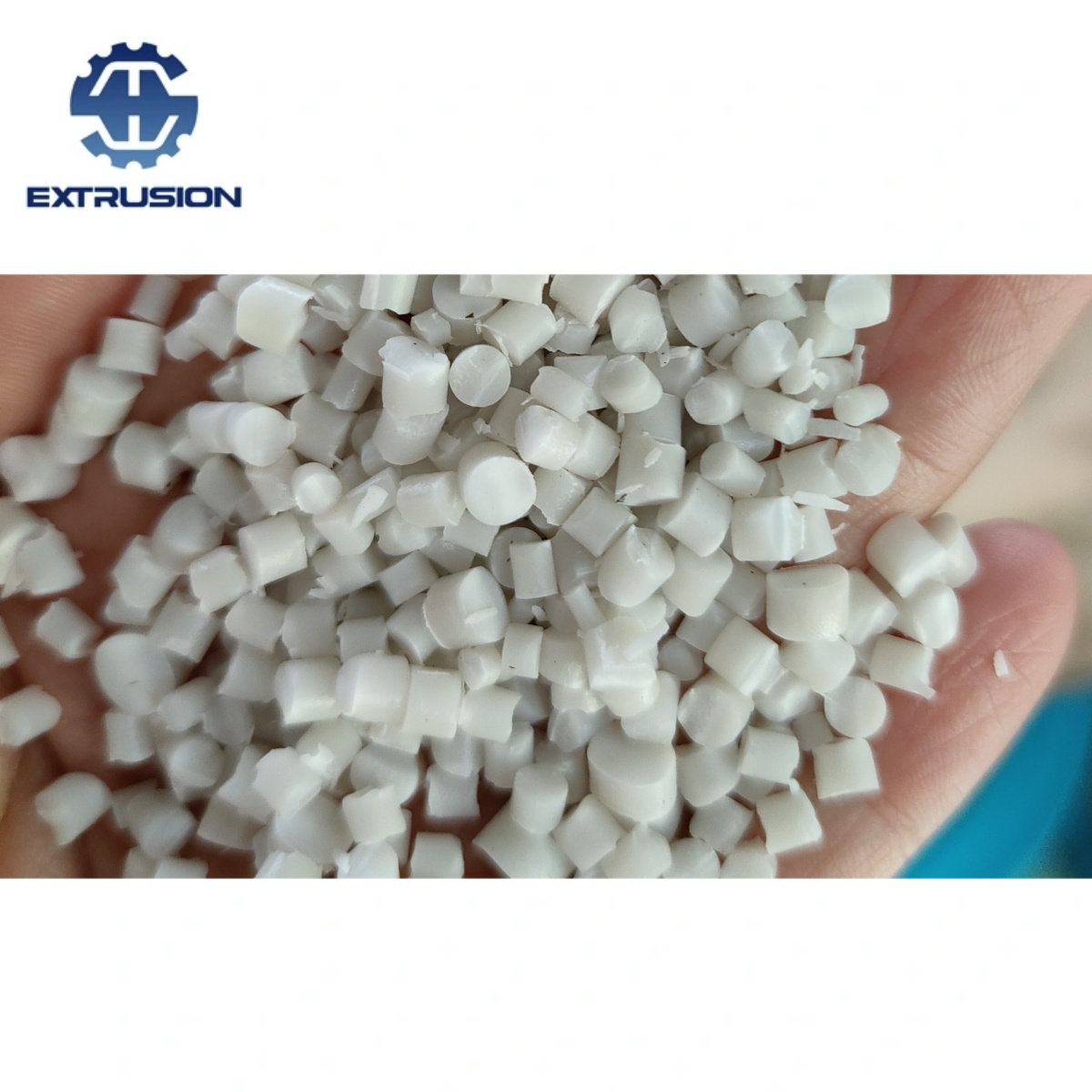

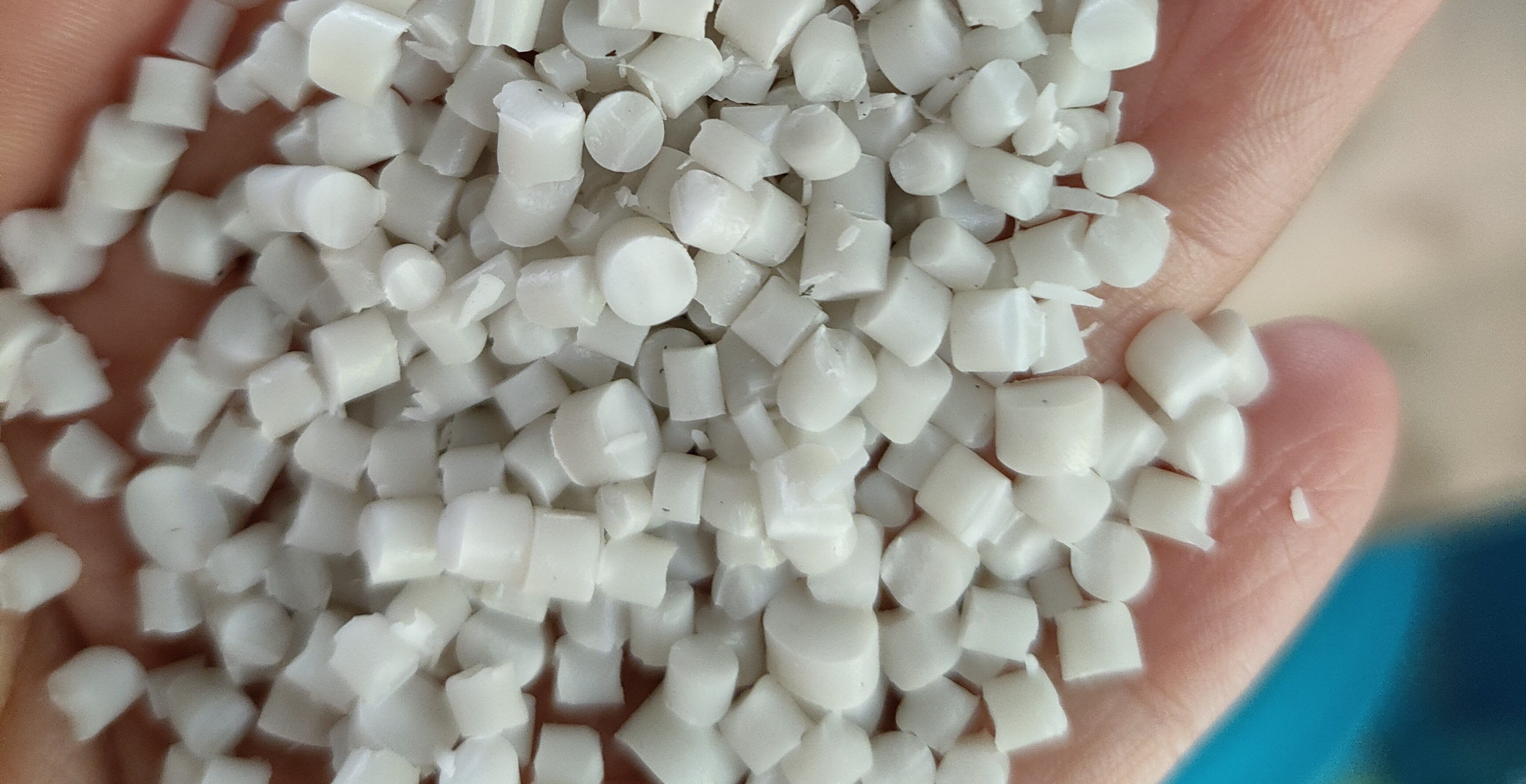

The 1-30 kg/h capacity allows researchers to run complete compounding tests using a very small amount of material. It provides the perfect balance: it is small enough to minimize material waste during trial-and-error, yet large enough to produce enough pellets for subsequent injection molding or mechanical testing.
A: The side feeder makes this lab machine incredibly versatile. Instead of putting all materials into the main hopper, the side feeder allows you to introduce additives (like calcium carbonate, talc, or color pigments) and reinforcements (like glass fiber) downstream into the already molten polymer.
This split-feeding capability prevents abrasive wear in the early melting zone and preserves the length of fragile glass fibers, accurately replicating professional industrial compounding processes.
A: Yes. We know that lab machines process different materials and colors daily. The TSE-30 features a modular barrel and screw design. The screw elements can be quickly reconfigured or removed for manual cleaning. Additionally, the compact size means that running a purging compound through the machine is fast and requires minimal material, keeping your downtime to an absolute minimum.
A: Absolutely. The TSE-30 is built with the exact same geometric proportions (L/D ratio), screw profiles, and thermodynamic principles as our large-scale industrial twin-screw extruders. The shear rates, mixing efficiency, and temperature profiles you record on the lab machine can be reliably and directly scaled up to our commercial production lines without needing to start the formulation process over.
A: Beyond its compact footprint and standard safety features, the TSE-30 provides a transparent, hands-on experience for polymer engineering students. The segmented barrel design allows students to clearly understand screw configurations (conveying, kneading, and mixing zones). It equips the next generation of engineers with practical experience on genuine, industry-standard equipment.
Upgrade your university lab or corporate R&D center with our most versatile testing equipment. Contact the Nanjing Haisi sales engineering team today to discuss your specific testing requirements and receive a customized quotation.
