The corn puffer, technically known as a Twin-Screw Food Extruder, is the powerhouse behind the modern puffed snack industry. Its primary function is a sophisticated energy conversion: transforming mechanical and thermal energy into a physical change that "expands" raw grains into crispy, delicious snacks.
Whether you are processing corn, rice, millet, or beans, the twin-screw extruder offers a level of precision and versatility that single-screw machines cannot match. Here is a technical breakdown of its structure and working principles.
1. The Modular Structure of a Corn Puffer
Modern twin-screw puffers, such as those engineered by Nanjing Haisi, utilize a modular (building block) design. This allows for extreme flexibility in processing different recipes.
Feeding System: Uses a forced metering feeder to ensure a uniform flow of raw materials. This prevents the "surging" common in manual feeding, ensuring every snack has a consistent texture.
Extrusion Barrel & Screws: The "heart" of the machine. The barrel is divided into multiple independent temperature-controlled zones. These zones can be heated electrically or via steam, and cooled with water, allowing for precise control over the starch gelatinization process.

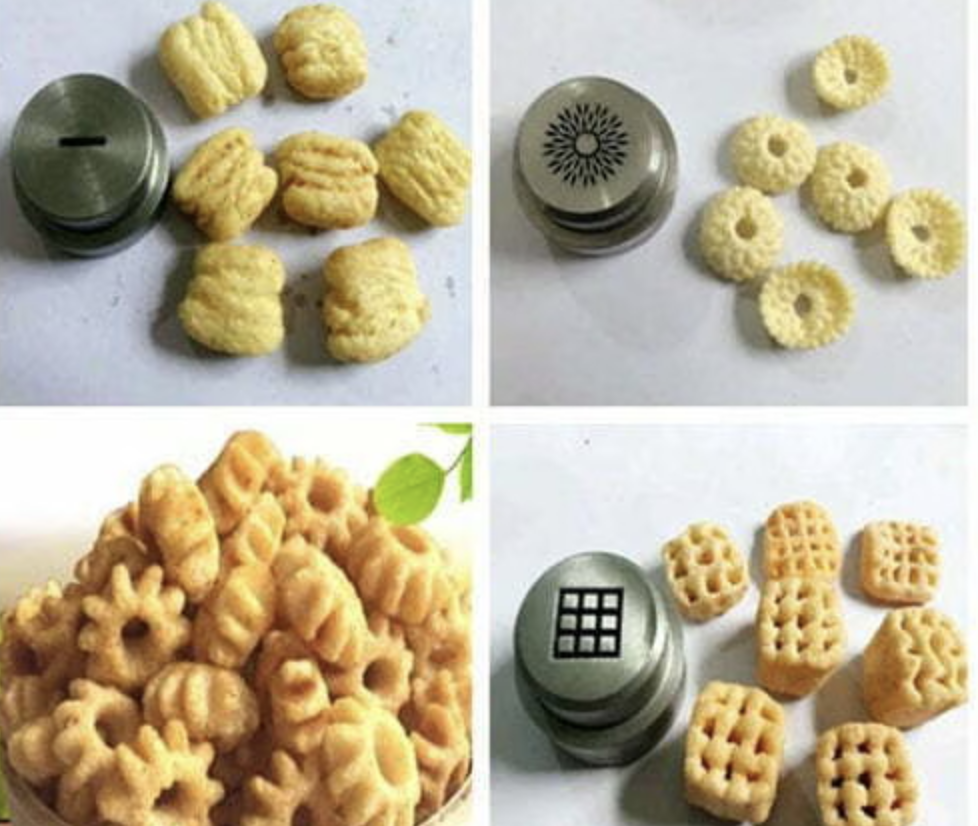

Cutting System: Located at the die head, a high-speed rotary cutter shapes the puffed material as it exits the machine, creating anything from rings and balls to complex floral shapes.
2. The Working Principle: From Grain to Puff
The transformation of raw corn powder into a crispy snack involves three critical physical phases:
Phase I: Forced Conveying and Mixing
As the two intermeshing screws rotate in the same direction, they move the material forward based on the positive displacement principle. Unlike single-screw machines that rely on friction, the twin-screw system forces the material forward regardless of its stickiness or moisture content.
Phase II: Shear, Friction, and Plasticization
As the material moves into the high-pressure zones, the screw geometry changes to increase shear.
Mechanical to Thermal Energy: The intense friction between the screws and the material generates significant heat.
Starch Gelatinization: Under high temperature (120-180℃) and pressure, the starch granules in the corn burst and form a molten "paste." This process also effectively kills microbes and bacteria, ensuring food safety.
Phase III: Instant Expansion (The "Flash" Effect)
The most dramatic stage occurs at the die head. The molten paste is pushed through a small die opening, moving from a high-pressure environment (up to 10 MPa) to normal atmospheric pressure.
Water Vaporization: The superheated moisture in the dough instantly turns to steam and expands.
Structural Fixation: The material expands into a porous, "puffed" structure and solidifies as the moisture escapes, creating the signature "crunch" of puffed snacks.
3. Why Choose Twin-Screw over Single-Screw?
For professional food manufacturers, the advantages of a twin-screw puffer are clear:
Superior Material Handling: It can handle high-fat, high-sugar, or high-moisture recipes that would cause a single-screw machine to slip or clog.
Self-Cleaning Capability: The intermeshing screws wipe each other clean during operation. This reduces downtime for cleaning and prevents the buildup of degraded material inside the barrel.
Consistent Quality: Because of the forced conveying and precise temperature control, the density, shape, and crispness of the final product are highly uniform.
Economic Efficiency: Higher throughput and lower waste make the twin-screw extruder the more profitable choice for large-scale snack production.
Conclusion: Tailoring Your Production Line
The success of a puffed food product depends on the screw configuration—balancing the right amount of shear to achieve the perfect expansion without burning the material.
At Nanjing Haisi Extrusion Equipment Co., Ltd., we apply our deep knowledge of twin-screw mechanics to the food industry. Whether you are producing traditional corn puffs or modern high-protein plant-based snacks, our modular extruders provide the reliability and precision you need to succeed in a competitive market.
