Plastic Extruder Water Ring Pelletizing Line

The water ring pelletizing system is applicable to most products filled or unfilled thermoplastic materials.
Ensures the uniformity of the template temperature.
More smooth and beautiful appearance of material particles.
Reduces the floor space of the equipment.
Availability:
Quantity:
  • HS

Advantage of water ring pelletizing system

The water ring pelletizing system is applicable to most products filled or unfilled thermoplastic materials. Because the water ring pelletizing is formed around the template, the template does not contact with the cooling water. This characteristic of the water ring pelletizing system ensures the uniformity of the template temperature, so that the template discharge is still very uniform and normal even if the output is very low.

water ring pelletizing system

Due to the die surface heating system, the water ring pelletizing system not only ensures the smooth and beautiful appearance of material particles, but also timely enters the cooling water ring after the granular materials are cut out, which makes the equipment compact and reduces the floor space of the equipment.

water ring pelletizing line


Water Ring Pelletizing System for filling, Compounding, Modificating


Plastic Extruder Water Ring Pelletizing Line

1.High Speed Mixer 2.Main Feeder 3.Side feeder 4.Twin screw extruder 5.Water-ring pelletizer 6.Centrifugal Dewaterer 7.Vibrating Screen 8.Silo


Application of water ring pelletizing system:

PE, EVA etc. Filled with CACO3,talc,TIO2,carbon black etc.

Cable sheath, cable insulation compoundes of LDPE,HDPE,LLDPE,or MDPE;

Radiation-crosslinkable, heat-shrinkable cable compounds;

PPR pipe compounds, PE compounds for crosslinked pipes;

TPR, TPU thermoplastic elastomers; EVA and hot-melt adhesives;

Color concentrations of PE,ABS, PS,EVA,etc;

Flame retardant master batches of ABS,PS,EVA,etc;

Master batches with PE,PP,PS,etc carriers for degradation applications.

Plastic granules

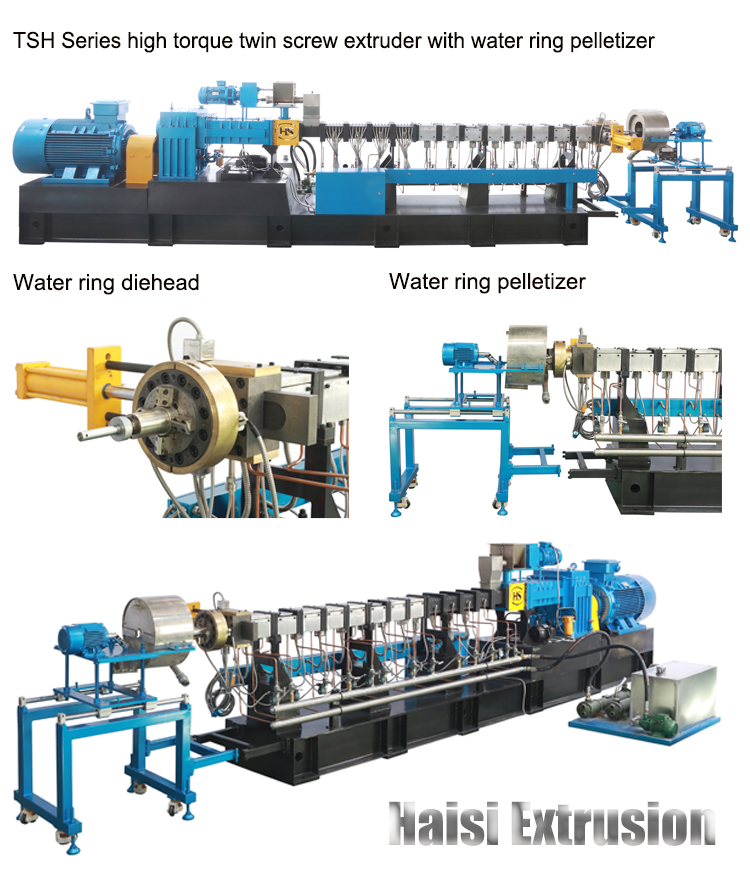

Details of water ring pelletizing system:

Plastic Water Ring Pelletizing Line

Auxiliary Equipment

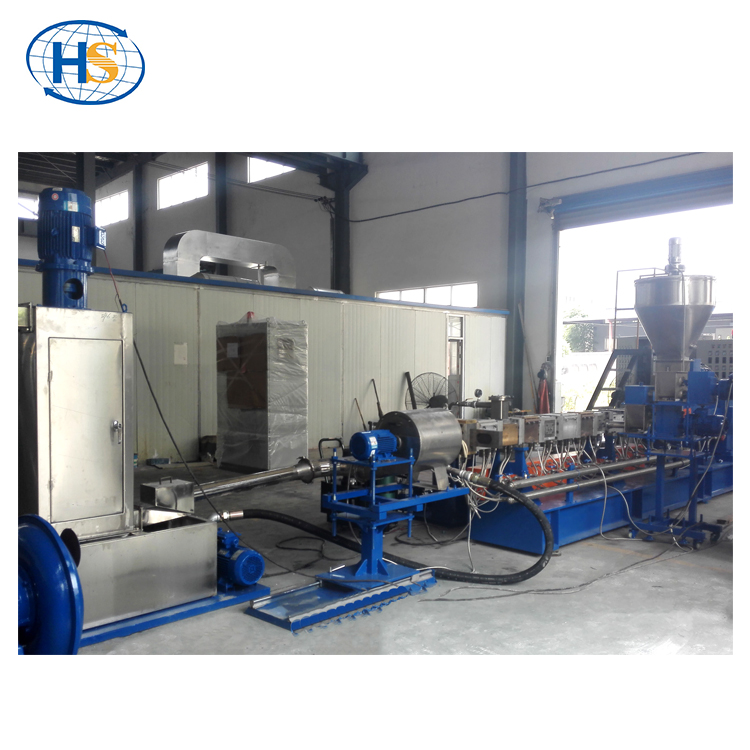

Water ring pelletizing system test running:

Granulator Machine

Country:Egypt
Capacity:500-800 kg/h
pelletizing system:water ring pelletizer
Extruder:TSH-75 (48)
Material:PP/PE filler masterbatch (blue)

Granulator

Country:India
Capacity:250 kg/h
pelletizing system:water ring pelletizing
Extruder:TSE-50B (48:1) + 200 mixer + screw loader
Material:LLDPE+PP masterbatch,50-80% Caco3


Technical data of Water Ring Pelletizing System:

Mode

Diameter

(mm)

L/D

Screw rotary speed

(r/min)

Motor power

(kw)

Torque

(N.m)

Capacity

(kg/h)

TSE-40B

41

32-52

400

22

263

90-150

TSE-52B

51.5

32-64

600

75

597

225-250

TSE-65B

62.4

32-64

600

90

716

250-300

TSE-75B

71

32-64

600

132

1050

350-550

TSE-75D

71

32-64

600

220-250

1990

500-1000

TSE-95B

93

32-64

600

315

2506

800-1200
