TPE Pelletizing Equipment: Extruders, Pelletizers & Production Scale

TPE (Thermoplastic Elastomer) pelletizing requires specialized extrusion and pelletizing equipment. The choice of machines is closely related to the production process and manufacturing scale. Below is a detailed guide to the main equipment used in TPE pellet production and how equipment selection changes with different production capacities.

1. Main Production Equipment

(1) Screw Extruder

• Function: The screw extruder is the core of any TPE pelletizing line, responsible for melting, mixing, and extruding the TPE formulation.

• Types:

• Single screw extruder: Simpler, cost-effective, suitable for small-scale production.

• Twin screw extruder: Offers better plasticizing, dispersion, and mixing uniformity. Especially advantageous when processing filled compounds with additives like calcium carbonate.

• Selection: For small-scale production, single screw extruders reduce investment. For large-scale or high-quality production, twin screw extruders are recommended to ensure higher efficiency and product consistency.

(2) Pelletizer

• Function: Cuts extruded TPE strands into uniform pellets.

• Types:

• Air-cooled pelletizer

• Water-cooled strand pelletizer

• Water-ring pelletizer

• Underwater pelletizer

• Selection: The right pelletizer depends on production volume and product quality requirements. For large-scale production or high-surface-quality TPE pellets, water-ring or underwater pelletizers are ideal, producing uniform, non-sticky granules.

(3) Mixer (Internal Mixer or Banbury Mixer)

• Function: Pre-mixes and plasticizes raw TPE materials, ensuring uniform dispersion of all components.

• Selection: Large-scale or complex formulations require high-performance mixers with stronger dispersion capabilities.

2. Auxiliary Equipment for TPE Pelletizing Line

In addition to extruders and pelletizers, a complete TPE granulation line also requires:

• Cooling System: Prevents deformation and damage of hot extruded strands. Selection depends on material characteristics and production capacity.

• Drying Equipment: Removes moisture from SBS, SEBS, or stored TPE granules to ensure stable product quality. Energy efficiency and drying speed should be considered.

• Conveying System: Automates the transport of raw materials, semi-finished products, and final pellets. High automation is common in medium- to large-scale plants.

• Testing Equipment: Tensile testers, hardness testers, and density meters are essential for TPE quality control, ensuring products meet industry standards.

3. Relationship Between Production Scale and Equipment

• Small-Scale Production:

• Single screw extruder

• Small mixer

• Manual or semi-automatic pelletizer

        Suitable for small batch production, lab-scale testing, and formulation R&D with lower investment.

• Medium-Scale Production:

• Twin screw extruder

• Medium mixer

• Automatic pelletizer

        Improves efficiency and stability, meeting growing market demand.

• Large-Scale Production:

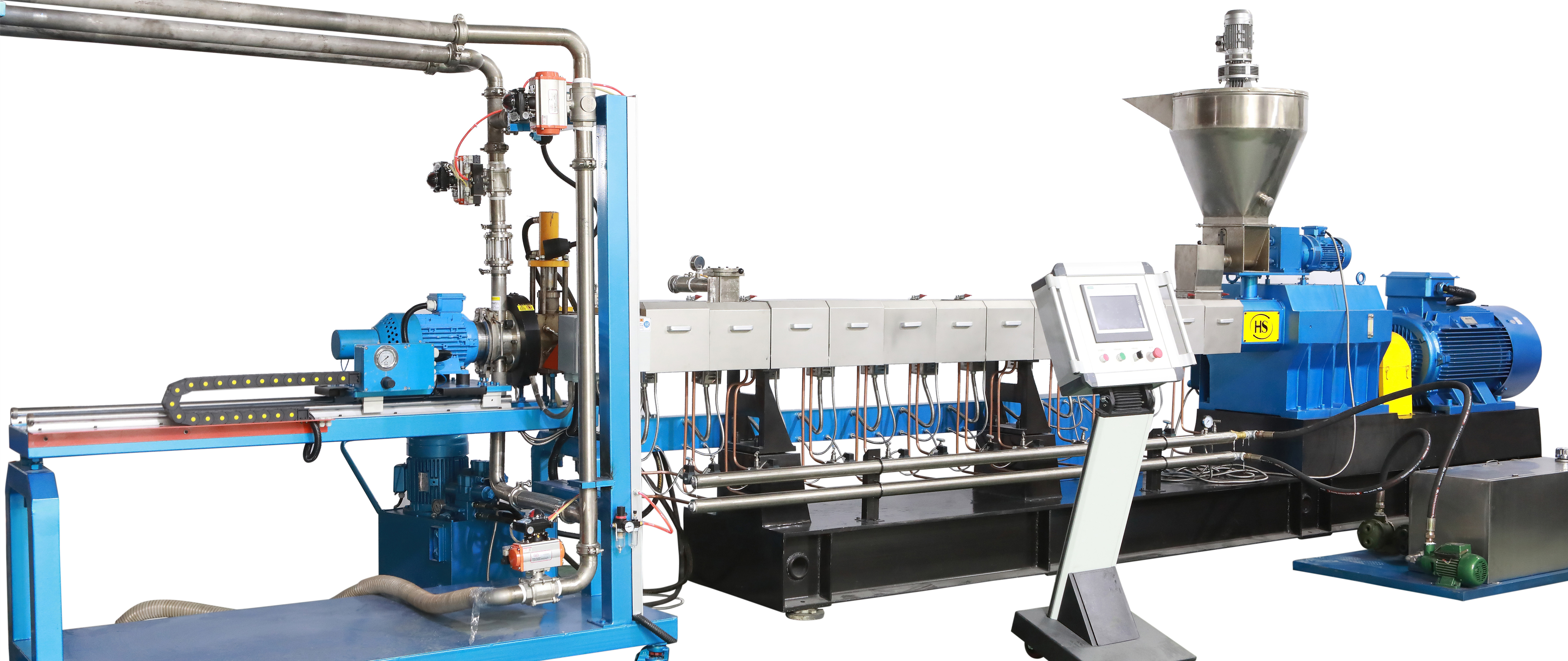

• High-capacity twin screw extruder

• High-performance internal mixer

• Fully automatic underwater or water-ring pelletizer

• Automated conveying and testing equipment

        Enables continuous, automated production with high product consistency and efficiency.

• OEM / Outsourcing:

        If in-house production capacity or testing capability is insufficient, companies can outsource TPE pellet compounding or quality testing to third-party manufacturers.

Conclusion

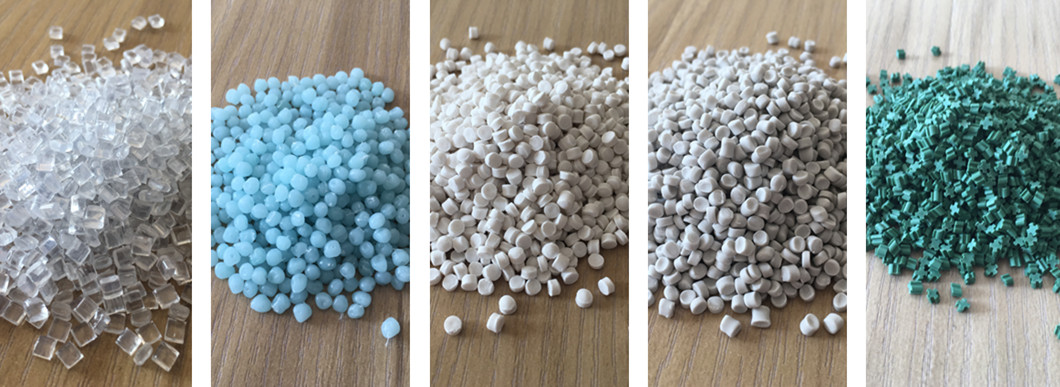

The choice of equipment for TPE pelletizing depends on production scale, formulation complexity, and quality requirements. Single screw extruders and basic pelletizers work well for small-scale or R&D use, while twin screw extrusion lines with underwater pelletizers are essential for large-scale, high-quality TPE granule production. With the right equipment and process optimization, manufacturers can ensure consistent TPE pellets for applications in footwear, automotive parts, toys, and consumer products.
