In any plastic pelletizing system, the cutting blades (or knives) are the highest-wear components—and often the most expensive to maintain. How quickly a blade dulls depends entirely on your throughput volume, the abrasiveness of the material being processed, and the specific polymer characteristics.
Here are the core troubleshooting strategies and maintenance answers every operator needs to know to keep their pelletizer running efficiently.
1. What Happens When Blades Are Dull or Improperly Spaced?
Operating with compromised cutting components causes a cascading failure in product quality and machine health. Symptoms include:
Uneven Pellets & Dust: The machine begins to "tear" rather than cut the polymer, producing irregular shapes and excessive fines.
Throughput Drop: Reduced cutting efficiency lowers overall line capacity.
Excessive Noise: The cutting chamber will sound distinctly louder and rougher as the rotor struggles.
Spiking Energy Consumption: The motor must work significantly harder to force the cuts.
Heat Buildup: Friction from dull blades melts the material at the cutting face, causing smearing and agglomeration.
Premature Component Failure: The intense vibrations and mechanical strain will quickly destroy drive belts, tensioners, and bearings.
2. Is Visual Inspection Actually Worth It?
Absolutely. Visual inspection must be a mandatory part of your Preventative Maintenance (PM) schedule.
By having trained personnel regularly inspect the blades, you establish a baseline for how often they need sharpening based on your specific materials. Logging machine hours alongside these visual checks allows you to anticipate wear, schedule maintenance before the blades become completely blunt, and minimize catastrophic downtime.
3. How Do We Manage Gap Adjustment, Regrinding, and Replacement?
Dull blades are the single most common bottleneck in granulation. Managing them effectively requires a systematic approach:

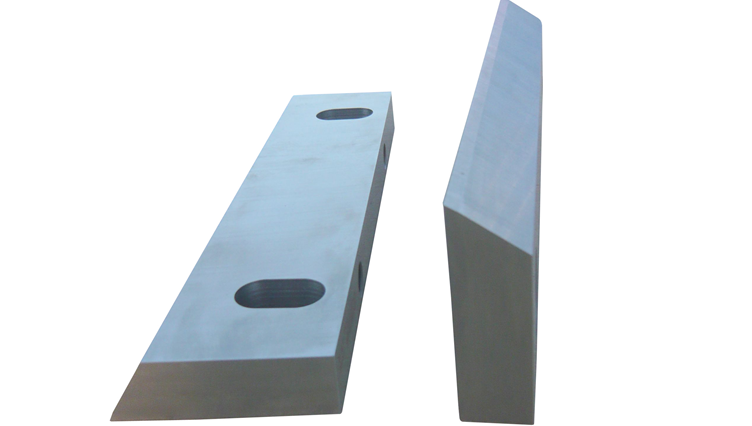

The "Spare Set" Rule: Never wait for blades to be reworked. Always keep at least one fully sharpened, ready-to-install set of knives on the shelf for every pelletizer. This prevents extended downtime.
Blade Gap Calibration: If your blades are sharp but the pellet quality is still poor, the gap tolerance is likely off. The gap is the clearance between the rotary (moving) blades and the stationary bed knives (or the die face). For most granulators, the recommended clearance is 0.2 to 0.3 mm. Adjusting this clearance should be the highest priority in your PM schedule.
Safe & Fast Replacement: Utilize a blade gap pre-adjustment fixture. This allows your maintenance team to set the exact clearance on a spare rotor assembly outside the cutting chamber. It ensures a rapid changeover and prevents the severe injury risks associated with adjusting razor-sharp knives directly inside the machine.
Manual Rotor Check: Adjustable rotary blades offer superior durability because each knife can be individually sharpened. Crucial Safety Step: After installing new blades, always rotate the rotor manually by hand to confirm there is no metal-on-metal contact before engaging the motor.
Precision Regrinding: Always follow the exact grinding angles specified in your operation manual, or partner with professional industrial knife sharpeners to ensure the cutting geometry is perfectly restored.
4. Don't Ignore the Screen and Die Plate
If the cutting chamber is poorly maintained, the clearance between the screen (or die plate) and the cutting edge increases. This leads to immediate material blockages and severe throughput reduction.
Furthermore, the die plate itself suffers from abrasion over time. If you inspect the circular extrusion holes and notice they are beginning to look "pear-shaped" or elongated, sharpening the blades will no longer help. The uneven holes will extrude inconsistent strands, indicating it is time to replace the die plate entirely.
