The Real Challenge in PA6 + 30% GF Production
PA6 + 30% glass fiber is one of the most common engineering plastic formulations. On paper, it looks straightforward. In practice, it is not.
The difficulty is not simply melting nylon and adding glass fiber. The real challenge is balancing several critical factors:
Fiber length retention
Stable torque under high filler loading
Controlled melt temperature
Long-term wear resistance
If one of these factors is overlooked, the material may still look acceptable — but mechanical performance, processing stability, or machine lifespan will quietly suffer.
A proper twin screw extruder configuration determines whether you produce consistent engineering-grade pellets — or just filled nylon.
Main Feeding and Side Feeding: Why Position Matters
Feeding strategy is the first critical decision in PA6 + 30% GF compounding.
Main Feeding – Controlled Nylon Input
PA6 should be introduced through the main feeder using a loss-in-weight dosing system. Stable feeding ensures:
Consistent melt pressure
Stable torque
Uniform fiber distribution later in the process
Moisture control is equally important. Nylon must be properly dried before entering the extruder. Even slight moisture fluctuation can affect melt viscosity and final mechanical properties.
Side Feeding – Protecting Glass Fiber Length
Glass fiber should not be introduced together with nylon from the main hopper.
Instead, short glass fiber is typically added through a side feeder after the PA6 is fully melted.
Why?
Adding fiber too early can cause several problems:
Excessive shear
Significant fiber breakage
Dust and unstable feeding
By introducing glass fiber into a stable melt zone, the polymer can encapsulate the fibers more effectively. The result is:
Better dispersion
Improved fiber length retention
For many processors, this single adjustment makes a noticeable difference in final strength performance.
Temperature Control and Its Link to Screw Configuration
In PA6 compounding, temperature control and screw design cannot be separated.
PA6 typically processes within a moderate engineering plastic temperature range, but the exact profile depends on:
Viscosity of the base resin
Glass fiber content
Throughput requirements
If temperature is too high:
Polymer degradation may occur
Color stability can be affected
Torque may fluctuate
If temperature is too low:
Melt viscosity increases
Glass fiber dispersion becomes uneven
Motor load rises
This is why the screw configuration must support a smooth and complete melting phase before the side feeding zone.
The screw is not just transporting material — it is creating a stable melt environment for fiber integration.
Screw Design Logic and L/D Ratio

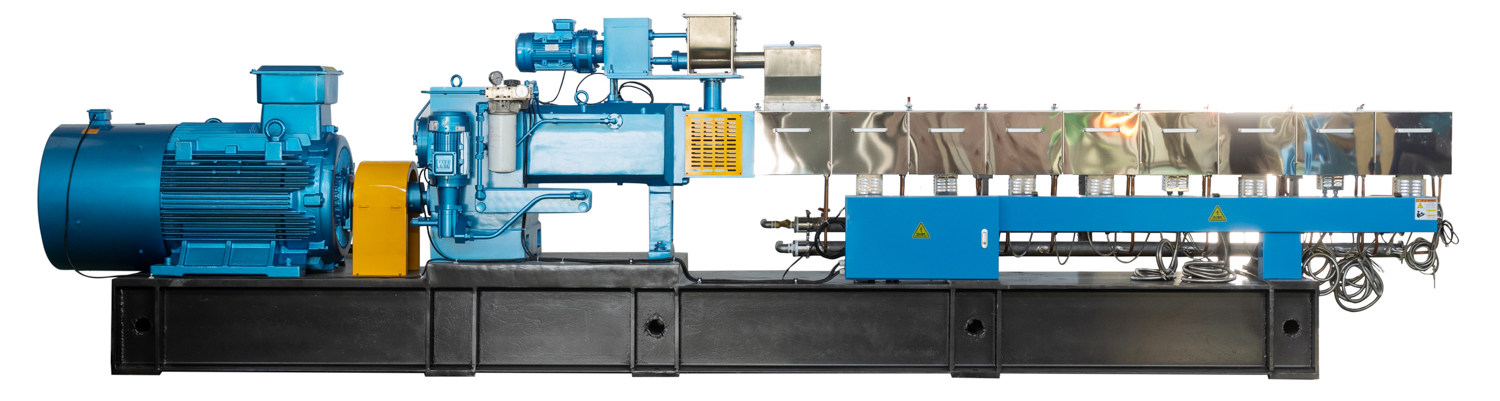

A well-designed twin screw extruder for PA6 + 30% glass fiber typically follows this structure:
1. Solid conveying section
2. PA6 melting section
3. Controlled mixing zone
4. Side feeding port for glass fiber
5. Low-to-moderate shear dispersion section
6. Optional vacuum venting
7. Metering section
The goal is not maximum shear — the goal is controlled dispersion.
Excessive kneading blocks may shorten fiber length
Insufficient mixing may cause poor fiber distribution
The correct balance depends on actual production targets.
L/D Ratio Consideration
For many PA6 + 30% GF applications, an L/D ratio around 40:1 works effectively.
Shorter configurations may limit melting stability
Excessively long setups may introduce unnecessary shear and higher cost
The optimal setup always depends on output expectations and performance requirements.
Torque Capacity and Wear Resistance
Glass fiber reinforced nylon is mechanically demanding for any compounding line.
High filler loading leads to:
Increased torque demand
Higher internal pressure
Greater mechanical stress on gearbox and shafts
A twin screw extruder designed for engineering plastics must provide sufficient torque density to support continuous 30% glass fiber production without operating near its limits.
Wear Protection
Glass fiber is highly abrasive.
Over time it will wear:
Screw elements
Barrel liners
For long-term production, enhanced wear-resistant materials are strongly recommended.
Many processors underestimate this factor at the beginning — only to discover later that maintenance costs offset the initial savings.
Typical Applications of PA6 + 30% Glass Fiber
Glass fiber reinforced PA6 is widely used in:
Automotive structural components
Electrical and electronic housings
Industrial brackets and mechanical supports
Metal replacement applications
For injection molding factories already processing PA materials, in-house nylon compounding can become a strategic move:
Better cost control
Flexible formulation adjustment
Reduced dependency on external suppliers
However, moving from injection molding to compounding requires deeper process knowledge, particularly in:
Feeding strategy
Screw configuration
Final Thoughts
Producing PA6 + 30% glass fiber pellets is not about aggressive mixing or maximum output.
It is about achieving the right balance between:
Feeding stability
Correct fiber addition timing
Balanced screw configuration
Reliable torque capacity
Long-term wear resistance
When these factors align, production becomes predictable.
When they do not, problems appear slowly — often in the form of:
Unstable mechanical properties
Increasing maintenance costs
Every PA6 + 30% GF project has its own processing targets. The key is configuring the twin screw extruder accordingly.
If you are considering starting or optimizing nylon glass fiber compounding, machine configuration is where real performance begins.
