Views: 0 Author: Site Editor Publish Time: 2026-07-27 Origin: Site
Many buyers compare equipment by just staring at spec sheets and price tags. However, in the realm of underwater pelletizing, you are not just buying a machine; you are securing a long-term "technical partner."
Why? Because underwater pelletizing systems are significantly more complex and delicate than traditional strand pelletizers. The learning curve is incredibly steep, and different suppliers use vastly different design logic.
A reliable supplier acts as your technical safety net. Their goal isn't just to sell you hardware; they proactively help you troubleshoot risks and bridge any technical gaps your team might have. Therefore, the most critical advice is: Understand your supplier's capabilities, and make sure they thoroughly understand your actual production needs. This is the deciding factor in whether your line will start up smoothly or face constant downtime.
During the equipment selection phase, buyers often face a dilemma: either the supplier upsells unnecessary features, or the buyer's strict budget forces devastating compromises on the technical specifications.
When technical necessities bow to budget constraints, the result is a production disaster. Underwater pelletizing relies on a delicate dynamic balance. Your core materials, formulations, and target throughput must be precisely aligned with the equipment's configuration. You cannot treat a UWP system like a generic, one-size-fits-all machine.
Take the die plate—the absolute heart of the system. It must be custom-tailored to your specific polymer melt. A professional supplier will meticulously design the die based on four non-negotiable metrics:
Expected die pressure
Extruder throughput capacity
Melt viscosity of the specific formulation
Target pellet specifications (e.g., weight per 100 pellets)
When the equipment arrives, it is time for the commissioning phase. The field service engineer sent by your supplier is the key to your future pellet quality and operational stability.
This engineer shouldn't just install the machine; they must act as the "head coach" for your workshop operators and maintenance team. During the training period, ensure they deliver on the following:
Explain the Logic, Not Just the Buttons: Operators must understand the mechanical principles behind every automated sequence.
Apply the 80/20 Rule for Formulations: Don't try to run every recipe on day one. Focus entirely on dialing in the core recipes that account for 80% of your factory's output. Lock in those process parameters first.
Build a Spare Parts Strategy: Have the engineer explicitly list which wear parts (like blades and die insulation) must be kept in local inventory. Never wait until a machine goes down to order a critical part.
Custom Maintenance Protocols: Establish a daily maintenance routine tailored to your factory to keep the system running efficiently.
No matter how perfect the preparation is, operators will eventually encounter strange pellet defects. Don't panic. Here are the four most common pain points and how to resolve them:
The Problem: Irregularly shaped pellets (often resembling footballs or completely deformed chunks). Standard underwater pellets should be perfectly spherical or micro-cylindrical.
The Causes: This is usually driven by three culprits: unstable feeding/extrusion, clogged die holes, or "die freezing" (where the polymer prematurely solidifies inside the die capillaries).
The Solution: First, check the loss-in-weight feeders and the extruder RPM. Is the throughput surging? (Note for recycling operators: If your melt filtration/screen changer is failing, impurities will clog the die holes, instantly causing deformed pellets).

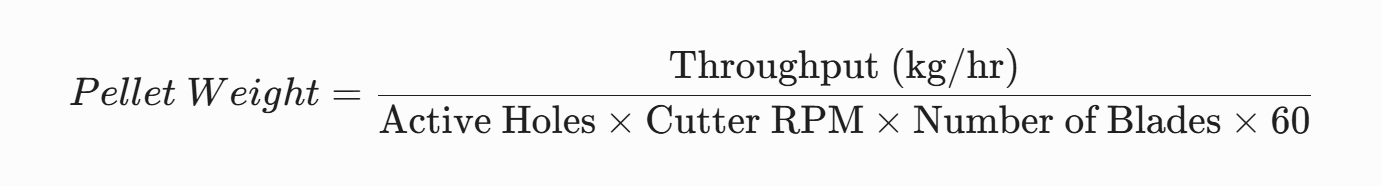

If you suspect "die freezing," verify the die heating elements are functioning and holding the set temperature. Process engineers can calculate exactly how many die holes are actually flowing versus frozen by using the standard pellet weight formula:
If the actual pellet weight is significantly higher than the theoretical calculation, a portion of your die holes are frozen shut due to low melt temperature or excessively cold process water.
The Problem: Pellets emerge with long strings or "tails." When these tails are violently knocked off inside the centrifugal dryer, they turn into a massive amount of plastic powder (fines) floating in your process water system.
The Causes: The cutter blades are not slicing cleanly. The material is being smeared and torn rather than cut.
The Solution: The root cause lies at the interface between the die face and the blades. Inspect the die face for deep scratches, scoring, or uneven wear; it may need to be removed and re-ground. Simultaneously, check the blades for excessive wear. Fortunately, modern UWP systems feature pneumatic auto-alignment that sharpens the blades against the die face dynamically during production.
The Problem: The moment you hit start, the material smears across the die plate and instantly freezes into a massive, solid disk of plastic (often referred to as a "pancake").
The Causes: A catastrophic timing failure during the startup sequence. UWP startup requires a split-second synchronization: the melt must exit the die holes, the process water must flood the cutting chamber, and the cutter motor must engage—all within milliseconds of each other. If the melt extrudes before the water and blades arrive, it will immediately clump across the die face.
The Solution: It is nearly impossible to time this perfectly via manual button presses. This is why high-quality suppliers utilize strict PLC-controlled logic interlocks. Rely entirely on the automated startup sequence programmed by the commissioning engineer.
The Problem: Pellets are sticking together in pairs or long chains.
The Causes: The pellets are colliding in the cutting chamber or water transport piping before their outer skin has adequately cooled and hardened.
The Solution: Check these three parameters immediately:
Process Water Temperature: Is the water too hot? If the water isn't cold enough, it cannot rapidly quench the pellet surface.
Melt Temperature: Is the extrusion temperature too high? Excessively hot melt carries too much internal thermal energy for the water to dissipate quickly.
Water Flow Rate: Is the pump pressure too low? Slow-moving water means the pellets spend too much time densely packed inside the cutting chamber, drastically increasing the chance of collision and adhesion.
NANJING HAISI is professional manufacturer of Plastic Extruder Machine, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Extruder, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
