What Is A Triple-Screw Extruder? How Adding One More Screw Transforms Plastic Compounding

From the earliest plunger-type extruders and single-screw extruders to today’s widely used parallel and conical twin-screw extruders, plastic extrusion technology has evolved over nearly a century. This evolution has powered the booming development of the polymer processing industry.

In recent years, triple-screw extruders have gained attention for their unique geometry, flexible screw arrangement, and multiple intermeshing zones. These features create complex material flow paths and velocity gradients, greatly improving mixing efficiency. With superior dispersive and distributive mixing, shorter L/D ratios, and higher output per unit power, triple-screw extruders are being recognized as a next-generation solution.

Let’s explore what sets triple-screw extruders apart, their structural design, advantages, and best-fit applications.

Structural Features of Triple-Screw Extruders

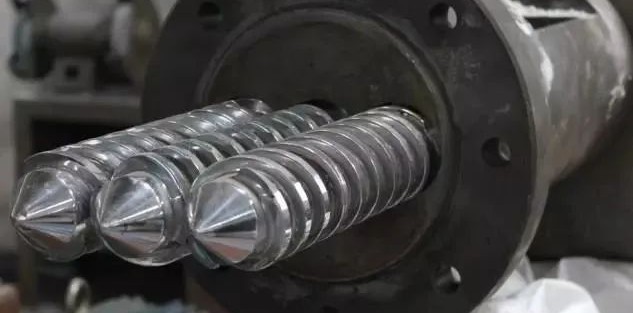

A typical triple-screw extruder has three screws arranged in a single row, all rotating in the same direction. This creates two pairs of intermeshing screws, resulting in multiple kneading and mixing zones.

As demand for high-performance polymer processing increases, conventional symmetric triple-screw extruders can sometimes lack sufficient flow variability to meet modern efficiency requirements. To address this, new high-efficiency triple-screw designs, such as parallel differential speed triple-screw extruders, have emerged to better serve the industry.

Key Advantages of Triple-Screw Extruders

1. Excellent Plasticizing and Homogeneous Dispersion

Triple-screw extruders provide multiple intermeshing points, unlike twin-screw machines that have just one. This significantly boosts shear and kneading efficiency, allowing raw materials to melt faster and distribute additives more uniformly. This advantage is critical when producing highly filled masterbatches, ensuring better particle dispersion and product consistency.

2. Higher Throughput and Productivity

With the same axial pressure, triple-screw extruders offer a greater volumetric flow rate than twin-screw extruders. This means higher capacity and reduced material residence time, leading to increased production efficiency. For example, a 3-Φ60 triple-screw extruder can produce 180 kg/h of 50% carbon black masterbatch, while a 2-Φ60 twin-screw extruder typically achieves only 80 kg/h at 35% concentration.

3. Energy Savings

Despite higher initial investment, triple-screw extruders are more energy-efficient during operation. A 3-Φ60 machine, running at 500 rpm with a 55 kW motor, produces 180 kg/h of masterbatch using only 0.2–0.25 kW per kg, cutting operational costs.

4. Superior Product Quality

Triple-screw extruders achieve better mechanical properties and toughness in finished products, even at high filler loadings. For instance, carbon black masterbatch from triple-screw extruders maintains excellent flexibility, enabling production of ultra-thin films with uniform thickness.

5. Outstanding Degassing Capability

Their design enhances venting, preventing material build-up or blockages and improving product purity and surface finish—vital for high-quality plastic products.

6. Unique Molecular Grafting Ability

Triple-screw extruders can perform in-situ molecular grafting, transforming standard PP into high melt strength PP (HMS-PP). This makes it suitable for producing expanded polypropylene (EPP) foam beads with high expansion ratios, without using expensive grafted PP.

7. Compact Footprint

All components are mounted on a single frame, saving valuable floor space.

8. Reliable and User-Friendly

Triple-screw extruders often have longer gearbox warranties—up to three years—versus typical one-year warranties on twin-screw machines.

Triple-Screw vs. Twin-Screw Extruders: How to Choose

All screw extruders—single, twin, or triple—use screw rotation to transport, melt, shear, and mix materials. But their configurations offer unique advantages:

✅ Twin-Screw Extruders (Co-rotating):

• Excellent temperature and shear control

• Narrow residence time distribution

• Ideal for reactive extrusion (e.g., grafting, crosslinking)

• Commonly used for engineering plastics like PA, PC, and PBT

✅ Triple-Screw Extruders:

• Complex flow fields and extended residence time

• Up to 1.8–2.2× higher throughput vs. twin-screw extruders of the same diameter

• 15–25% lower specific energy consumption

• Best for large-scale continuous production of highly filled compounds and masterbatches

Recommended Applications

Twin-Screw Extruders: Precision chemical reactions, R&D, heat-sensitive bioplastics, small-batch multi-product runs

Triple-Screw Extruders: High-capacity masterbatch production, high filler systems (e.g., CaCO₃, TiO₂), plants aiming to reduce per-unit costs and equipment footprint

Looking Ahead

Triple-screw extruders excel in complex mixing, high-throughput production, and cost efficiency. Their potential is especially promising in advanced applications like nanocomposites, highly viscous materials, and ultra-high filler content masterbatches.

Companies should evaluate extruder selection based on materials, production scale, and operational goals. Pilot-scale testing can help confirm the best solution. With ongoing technological improvements, triple-screw extruders are set to play an increasingly important role in advanced polymer compounding.
