Many operators assume that if the temperature controllers display the set target and the "ready" light is on, the machine is safe to start. The fatal flaw lies in the difference between the displayed surface temperature and the actual internal state of the polymer.
False Temperatures and Cold Cores: When the controller reads 200°C, it only reflects the localized temperature measured by the thermocouple on the barrel wall. Plastics—especially highly crystalline or high-viscosity materials like PLA, PET, or PA—are poor heat conductors. Deep inside the barrel and around the core shaft of the screw, the residual material may still be frozen solid. This "hot on the outside, hard on the inside" condition is a massive trap.
Secondary Crystallization and Thermal Degradation: During a long shutdown, residual material left soaking in residual heat can severely degrade and carbonize, forming rock-hard coke blocks. When the screw attempts to shear these hardened, high-resistance blocks at startup, the mechanical torque instantly maxes out.

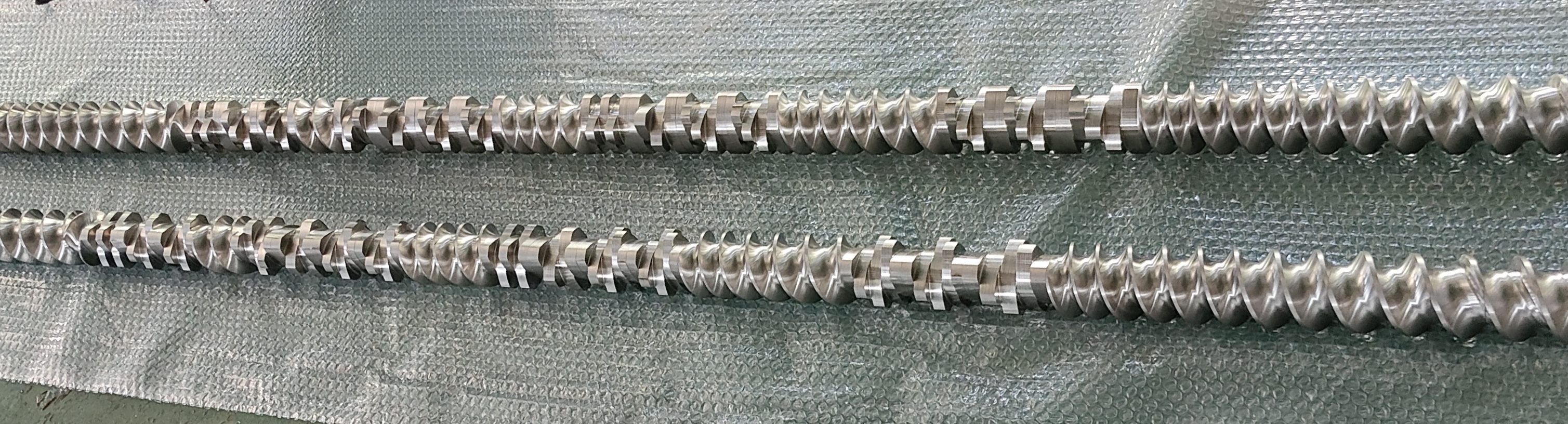

Thermal Locking: During shutdown, both the barrel and the screw cool down. However, the screw is suspended, meaning its heat dissipation rate differs entirely from the barrel. Due to differential thermal expansion and contraction, the residual polymer effectively "welds" the screw to the barrel wall or locks the kneading blocks together. Forcing a startup in this state is equivalent to a motor applying tens of thousands of Newton-meters of torque against a solid steel block.
Almost all modern extruder PLCs and control systems feature cold start protection or motor over-current limits. Theoretically, the system should trip before breaking the screw. Why doesn't it?
Response Lag: The main motor carries massive inertia. From the moment the current spikes, to the sensor detecting it, feeding it back to the inverter, and the inverter issuing the cutoff command, there is a delay of tens to hundreds of milliseconds. When a screw shears against a solid rock of carbonized plastic, the fracture happens instantly. The mechanical stress exceeds the screw's yield strength before the electronic protection can react.
Mechanical Blind Spots: Often, a jam is highly localized—stuck at a single kneading block or a specific decompression zone. The overall torque and motor current might not yet reach the 100% alarm threshold, but the concentrated stress at that specific point is more than enough to snap the splined shaft.
Do Not Blindly Trust Electronics: Electrical protection is excellent at catching slowly rising overload conditions. It is virtually useless against instantaneous, rigid mechanical impacts.
In the extrusion industry, there is an unwritten law: Never push the start button without manually barring the machine first. This manual rotation protocol is written in the blood of expensive repairs.
Heat Soaking: Once the controllers reach the target temperature, you must wait an additional 30 to 60 minutes (even longer for large-scale machines). This allows the thermal energy to penetrate deep into the screw core and completely soften the trapped polymer.
Power Lockout: Before physically touching the coupling, disconnect the main power and hang a "Do Not Operate" tag to prevent accidental motor starts.
Manual Rotation: Use a dedicated socket wrench or a breaker bar to manually rotate the coupling linking the gearbox and the motor.
Pass: The shaft can be smoothly rotated by hand for at least 3 full revolutions in both directions. The resistance feels uniform, with no sudden binding, metal-on-metal clunking, or sharp spikes in resistance.
Fail: If two operators using a breaker bar cannot move it, or if it suddenly locks up after half a turn, absolutely do not start the machine. You must continue heat soaking or open the barrel to inspect for metal contaminants.
When operators are rushed for time and feel the screw is a bit tight, they sometimes attempt to "jog" the motor (pressing start and stop rapidly) to force past the blockage. This is the fastest way to destroy your equipment. The starting impact torque of an industrial motor is immense. Jogging a stuck machine will almost instantly snap the screw shaft at the vent zone or at a point where the pitch suddenly changes.
Purge Before Shutdown: Before turning the machine off—especially for weekends or holidays—you must purge degradable or heat-sensitive materials (like PVC or PLA) with a high-melt-index PP or a dedicated commercial purging compound.
Clear the Vents: Physically inspect and clean the vacuum ports and natural atmospheric vents. Prevent molten material from accumulating in the chimneys and cooling into solid blocks.
Respect the Soaking Timer: It is vastly cheaper to wait an extra 30 minutes than to rush the startup and lose three days of production replacing a broken screw.
Make Manual Barring Mandatory: The rule of "3 manual turns after reaching temperature" must be written into your factory's standard operating procedures. Skipping this step should be strictly penalized to protect the machinery.

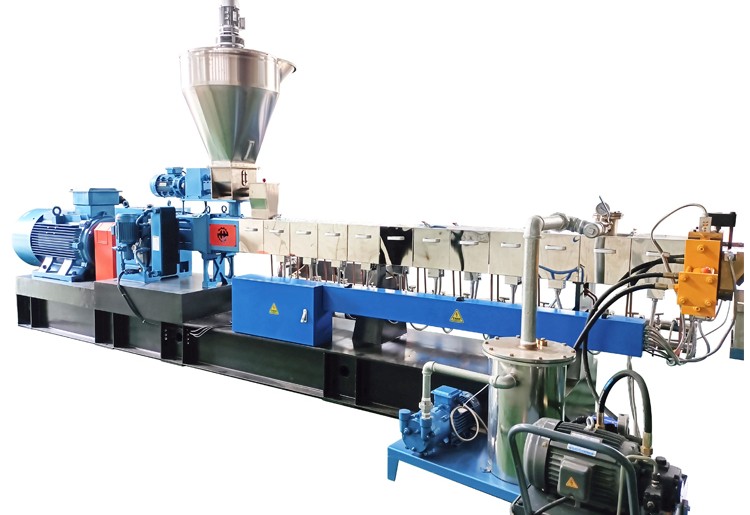

NANJING HAISI is professional manufacturer of Plastic Extruder Machine, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Extruder, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
