In the TPE pelletizing process, manufacturers sometimes introduce PA (Polyamide/Nylon) as a functional modification resin. While Thermoplastic Elastomers (TPE), especially SEBS- and SEPS-based compounds, are widely valued for their flexibility, elasticity, and environmental performance, they have inherent limitations in mechanical strength, heat resistance, and chemical resistance. Adding PA during TPE compounding and pelletizing enables manufacturers to significantly upgrade material performance and expand applications into high-end industries such as medical devices, wearable technology, and automotive components.
1. The Core Value of PA-Modified TPE Compounds
In TPE granulation, PA is not used as a filler but as a high-performance engineering resin modifier. Traditional SEBS and SEPS TPE compounds are non-polar elastomers that offer excellent softness and rebound characteristics. However, their non-polar nature restricts their resistance to oils, chemicals, high temperatures, and mechanical stress.
By precisely incorporating PA into TPE formulations, manufacturers can achieve:
Improved mechanical strength and durability
Enhanced heat resistance and dimensional stability
Superior chemical and media resistance
Extended service life in demanding environments
Maintained processability during extrusion and pelletizing
This modification allows TPE materials to meet strict performance standards required in advanced industrial applications.
2. Multi-Dimensional Performance Enhancement Mechanism of PA in TPE
PA is a polar semi-crystalline engineering plastic. When blended with SEBS or SEPS-based TPE during pelletizing, it forms a unique microstructure consisting of an elastomer continuous phase and rigid PA dispersed domains. This structure significantly improves overall material performance.
Improved Mechanical Properties
The crystalline phase of PA acts as physical cross-linking points that distribute external stress evenly. Combined with compatibilizers, this structure can increase:
Tensile strength by 30–50%
Tear resistance by 40–60%
Resistance to bending and puncture damage
These improvements help prevent cracking and mechanical failure during long-term use.
Enhanced Heat Resistance and Dimensional Stability
PA’s high melting temperature—approximately 220°C for PA6 and 178°C for PA12—raises the heat distortion temperature of TPE compounds to approximately 100–120°C. It also restricts polymer chain mobility, reducing shrinkage rates from 2–3% to approximately 0.5–1%, making the material suitable for precision molded parts.
Improved Creep and Aging Resistance
PA improves creep resistance under long-term pressure. For example, compression creep rates at 70°C for 24 hours can decrease from 15–20% to 5–8%. Additionally, PA’s polar functional groups can slow polymer degradation caused by UV radiation and thermal oxidation, extending product lifespan.
3. PA Selection and Formulation Ratios for Different TPE Base Materials
The selection of PA type and loading ratio must be carefully optimized according to the TPE base resin.
SEBS-Based TPE Compounds
SEBS-based TPE already offers moderate rigidity and balanced toughness. PA6 is typically selected because of its strong mechanical reinforcement and cost-effectiveness.
Recommended PA6 loading: 20–30%
Typical applications:
Medical tubing connectors
Automotive fuel system seals
Industrial oil-resistant hoses
SEPS-Based TPE Compounds
SEPS TPE provides superior flexibility and low-temperature resistance. PA12 is preferred because it offers better flexibility and compatibility with SEPS.
Recommended PA12 loading: 15–25%
Typical applications:
Smartwatch straps
Earphone and earbud sleeves
Rehabilitation device linings
This combination maintains soft-touch properties while improving chemical resistance to sweat, cosmetics, and body fluids.
4. Compatibilizer Design: Solving Polarity Compatibility Issues
PA is a highly polar polymer, whereas SEBS and SEPS are non-polar elastomers. Without compatibilization, direct blending can cause phase separation, whitening, layer delamination, and severe mechanical property deterioration.
To ensure uniform dispersion and stable bonding, formulations typically include MAH-grafted SEBS or SEPS compatibilizers with grafting ratios between 1.2% and 1.8%. The maleic anhydride groups react with PA’s functional end groups, while the elastomer backbone remains compatible with TPE matrices.
Recommended compatibilizer loading:
SEBS + PA6 systems: 8–12 phr
SEPS + PA12 systems: 8–10 phr
Proper compatibilization ensures consistent pellet quality and mechanical reliability.
5. Processing Optimization in TPE Pelletizing with PA
When PA is added, extrusion and pelletizing parameters must be adjusted to accommodate PA’s melting and rheological characteristics.

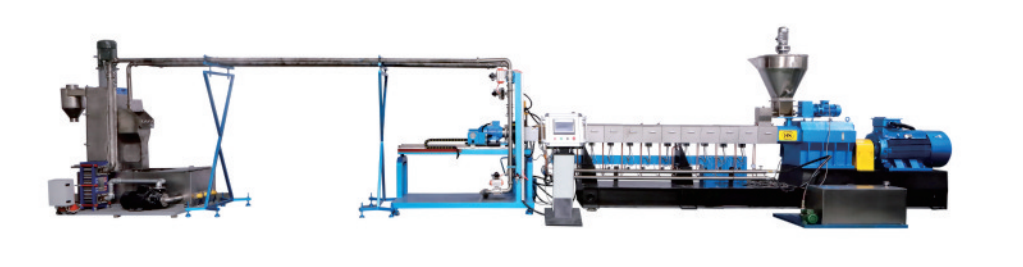

Twin Screw Extrusion Temperature Control
SEBS + PA6 system: 180–200°C
SEPS + PA12 system: 160–180°C
These ranges ensure full melting while preventing thermal degradation.
Screw Speed and Shear Control
Recommended screw speed: 300–350 rpm
Medium-to-low shear configuration is preferred to prevent elastomer molecular chain damage.
Vacuum Degassing
Maintaining vacuum levels above –0.08 MPa removes moisture and volatiles, preventing bubbles and internal voids in pellets.
Plasticizing Oil Adjustment
High-purity paraffin-based white oil is commonly used to control hardness and processing flow, with oil loading typically between 120–180 phr.
6. Performance Validation and Quality Control
PA-modified TPE compounds must undergo rigorous performance testing, including:
Chemical resistance testing (medical oil and 75% ethanol immersion with volume change ≤ ±3%)
Mechanical strength retention
Dimensional stability evaluation
Migration and extractable testing
These tests help ensure compliance with regulatory standards such as FDA and ISO 10993 for medical and consumer products.
7. Typical Applications of PA-Modified TPE Materials
PA-enhanced TPE pellets are increasingly used in high-performance sectors:
Medical Industry: Connectors, sealing components, and tubing systems resistant to disinfectants and chemical exposure.
Wearable Technology: Watch bands, earbud sleeves, and skin-contact accessories requiring sweat and cosmetic resistance with soft-touch performance.
Automotive Industry: Engine compartment seals, fuel system components, and vibration damping parts requiring oil resistance, heat stability, and long-term elasticity.
Conclusion
Adding PA during TPE pelletizing is an advanced compounding strategy that significantly enhances mechanical strength, chemical resistance, and thermal performance while maintaining flexibility and processability. With optimized formulation design, compatibilization technology, and twin screw extrusion processing, PA-modified TPE compounds have become a reliable solution for high-end industrial and consumer applications.
