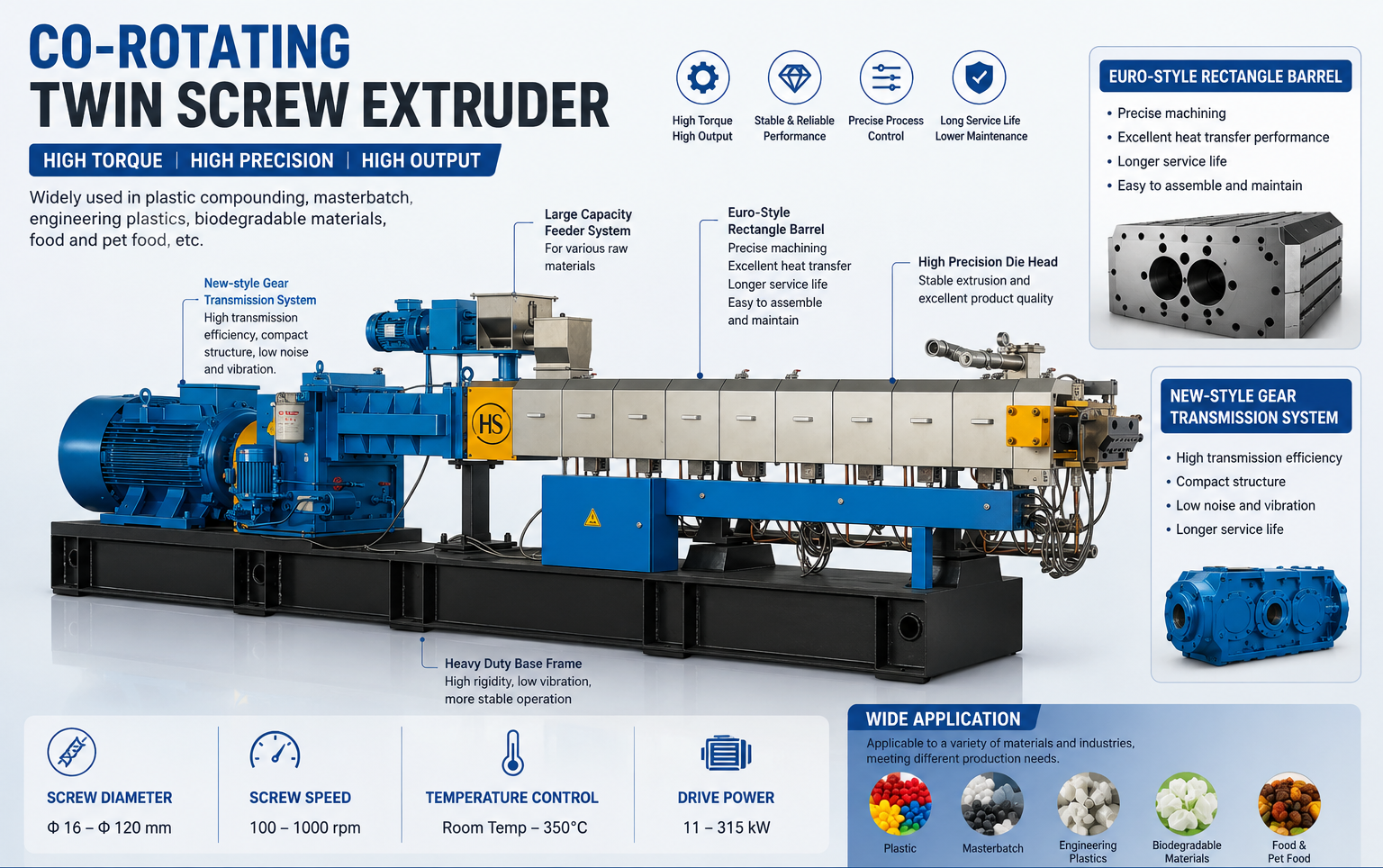

Twin screw extruders are widely used in plastic compounding, masterbatch production, filler modification, recycling, and reactive extrusion due to their excellent mixing and conveying capabilities. However, many manufacturers face a common challenge: the machine is running normally, raw materials meet specifications, yet the output remains below the designed capacity.
Low throughput not only reduces production efficiency but also increases specific energy consumption and operating costs. In this article, we explore the most common reasons why a twin screw extruder cannot reach its target output and provide practical solutions to improve productivity.
1. Feeding System Limitations: The Extruder Cannot Process What It Does Not Receive
Insufficient Feeding Capacity
The first factor affecting output is the feeding system. Even the most advanced twin screw extruder cannot achieve high production rates if the feeder cannot deliver enough material.
Common issues include:
Feeding rate set too conservatively.
Undersized feeder capacity.
Poor-flowing powders causing bridging or rat-holing.
Inconsistent material feeding.
This is especially common when processing calcium carbonate (CaCO3), talc, flame retardants, or mineral fillers.
Feeding Port Blockage and Material Backflow
If the feed section temperature is too high, material may soften prematurely and accumulate around the feed throat.
Other causes include:
Excessive conveying resistance.
Improper initial screw configuration.
Reverse elements located too close to the feeding zone.
Solutions: Lower the feed section temperature (improve barrel cooling), optimize the intake screw design, and regularly check for material leakage or dust around the feeding port.
2. Screw Configuration Problems: The Heart of Throughput Performance
The screw design has a direct impact on conveying efficiency, residence time distribution, and overall output.
Too Many Kneading Blocks
Many processors add excessive kneading blocks to improve dispersion. While this may improve mixing quality, it can also:
Increase flow resistance.
Reduce net material conveying efficiency.
Increase residence time.
Lower total throughput.
Best Practice: For most filler masterbatch and plastic compounding applications, moderate kneading sections combined with high-pitch conveying elements are sufficient.
Improper Reverse Screw Element Position
Left-handed (reverse) screw elements are vital for pressure build-up and melt sealing, but they significantly restrict output if positioned incorrectly.
The Problem: Misplaced reverse elements cause material accumulation, high torque loads, increased melt pressure, and trigger automatic reductions in the feed rate.
The Fix: Place reverse elements strictly after the melting section, near venting zones to establish a melt seal, or only where precise pressure control is required.
Incorrect Screw Pitch Selection
Large-pitch conveying elements generally provide higher volumetric throughput. Using small-pitch screw elements throughout the extruder can reduce the conveying volume, limit output capacity, and increase energy consumption. For high-output applications, longer-pitch conveying elements should dominate the majority of the conveying sections.
3. Processing Parameters: Temperature, Speed, and Torque
Even with flawlessly configured hardware, incorrect thermodynamic and mechanical settings will limit production.
Flawed Barrel Temperature Profiles
Too Low: If melting zone temperatures are too low, the polymer does not fully melt, pressure becomes unstable, and throughput decreases.
Too High: If temperatures are too high, material viscosity drops excessively, conveying efficiency decreases due to slippage, and thermal degradation may occur.
Best Practice: Implement a progressive, stepped temperature profile. Monitor the actual melt temperature at the die to keep it slightly above the polymer's required processing point.
Mismatch Between Feed Rate and Screw Speed (Fill Factor)
Twin screw extruders operate most efficiently within an optimal fill level.
Overfeeding causes high motor torque, overload alarms, and production interruptions.
Underfeeding leads to poor screw filling, reduced conveying efficiency (idle churning), and low output.
Best Practice: Processors achieve the best results when operating at approximately 75%–85% of the motor's rated torque capacity.
Poor Vacuum Venting Performance
When processing moisture-containing materials or formulations with volatile additives, inadequate venting significantly suppresses output. Symptoms include material surging, bubbles in pellets, unstable pressure, and material escaping through the vacuum port (vent flooding).
Recommended Actions: Maintain deep vacuum levels (above -0.06 MPa), clean vacuum lines regularly, inspect gaskets, and optimize the vent section's screw configuration for low pressure.
4. Material and Equipment Factors
Changes in Raw Material Characteristics
Production trials often use different raw material batches than actual production runs. Variations in bulk density, particle size, material shape, and moisture content can drastically affect feeding performance and mass throughput.
Solution: Whenever a new raw material batch or vendor is introduced, feeder calibration must be performed again.
Excessive Die Head Resistance
High die pressure translates to high backpressure, which reduces effective forward output via leakage flow. Common causes include using screen packs that are too fine, stacking excessive filtration layers, small die orifice diameters, or clogged screens. Regular screen changes and optimized die design help maintain stable throughput.
Screw and Barrel Wear
Mechanical wear is one of the most overlooked causes of declining production—especially common when processing highly abrasive glass fiber compounds, mineral-filled plastics, calcium carbonate masterbatches, or recycled plastics.
As the clearance between the screw and barrel increases, material backflow intensifies, conveying efficiency plummets, and melt temperatures rise due to shear. Output can easily drop by 20% to 30%. When severe wear occurs, worn screw elements or barrel liners must be replaced.
5. Systematic Troubleshooting Workflow
If output remains below target after checking individual components, execute this structured diagnostic audit:
Verify Feeder Capacity: Disconnect and test the feeder independently to measure the actual maximum material mass flow (kg/hr).
Build a Torque vs. Output Curve: Gradually increase the feeding rate at a set RPM while monitoring torque, screw speed, and production output. This maps out your maximum safe operating window.
Check Melt Temperature Uniformity: Large temperature variances across the melt stream indicate poor mixing, incorrect screw configuration, or flawed temperature settings.
Analyze Pressure Distribution: Utilize pressure sensors along the barrel zones to identify blockages, excessive flow restrictions, or suboptimal screw design areas.
Conclusion
When a co-rotating twin screw extruder fails to reach its designed output, the root cause is rarely a single isolated issue. Throughput limitations are typically a combination of feeding bottlenecks, screw configuration drag, unbalanced process parameters, raw material shifts, or mechanical wear. By systematically evaluating the entire extrusion line—from upstream feeding to downstream pelletizing—manufacturers can unlock hidden capacity, ensure stable product quality, and extend their equipment's lifecycle.
