Engineering for Yield: Optimizing Extruder Efficiency and Melt Quality

Modern applications for a twin screw compounding extruder extend far beyond basic feeding and melting, now encompassing aggressive dewatering, drying, and devolatilization. The global market demands machinery that operates at maximum efficiency while delivering impeccable product quality.

To fundamentally increase the production capacity of a plastic pelletizing machine, engineers must increase the rotational speed and expand the screw flight depth. Deeper flights drastically increase the conveying volume, but higher speeds reduce the residence time of the material. To ensure the polymer fully melts before exiting the die, the overall length-to-diameter (L/D) ratio of the screw must be extended, demanding significantly higher torque.

The overall efficiency of polymer compounding equipment also relies heavily on maximizing the internal "free volume" within the processing sections. Expanding the free volume in the feeding and devolatilization zones allows the machine to ingest massive quantities of low-bulk-density materials, instantly boosting the baseline processing capacity.

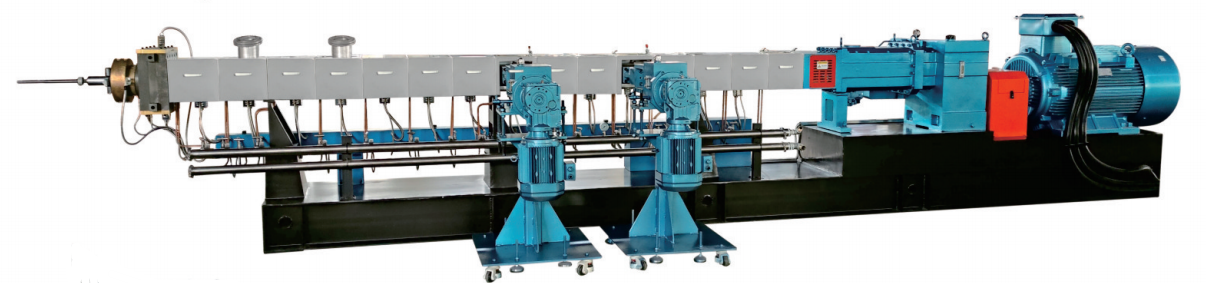

Achieving this geometry in a co-rotating twin screw extruder presents a complex engineering contradiction regarding the transmission system. Expanding the free volume without increasing the outer diameter forces the center distance between the two shafts to shrink, leaving minimal space for the distribution gears and heavy-duty thrust bearings. Overcoming this requires highly advanced gearbox engineering, utilizing premium metallurgy, precise heat treatments, and state-of-the-art gear machining to withstand massive torque loads in a highly condensed footprint.

Ultimately, product quality is governed by the precision of the modular screw design, which is a core specialty at Nanjing Haisi Extrusion. Through advanced 3D CAD modeling, engineers calculate the exact theoretical end-face curves to guarantee flawless shaft meshing without mechanical interference. This strict machining tolerance ensures a perfectly uniform radial clearance between the screw flights and the barrel wall, eliminating flow dead zones, maximizing self-wiping efficiency, and preventing the thermal degradation of heat-sensitive polymers.
