When processing high-filler masterbatch or mineral-filled compounds, the ultimate bottleneck often occurs right under the primary feed throat. If the machine cannot draw in enough bulk volume, downstream throughput is permanently throttled.
After passing through the initial kneading section, the material volume drops drastically, leaving the downstream barrel partially empty. If small-pitch conveying elements are placed directly under the main hopper, they saturate quickly and restrict intake.
The Optimization Strategy: Replace elements in the transition zone between the feed port and the first melting section with large-pitch conveying screws (approx. 2D). Increasing the pitch lowers the volumetric fill ratio, allowing the screw to draw in significantly higher feed volumes at the same RPM.
Increasing feeder speed shortens material residence time inside the barrel. As throughput rises, the plasticization zone shifts downstream toward the die head, which can compromise melt uniformity.
Furthermore, cold material introduced at the side feeder drops the melt temperature significantly. If the polymer isn't fully melted before reaching the side feeder, processing issues intensify.
The Optimization Strategy: Incorporate three-flight kneading blocks in the melting zone. Three-flight elements deliver higher shear stress and intense frictional energy, rapidly elevating the polymer temperature to its ideal melting point before reaching the side feed throat.
When feeding large quantities of light powders or glass fibers via a side feeder, conveying capacity becomes a strict limitation. The upstream polymer matrix must be 100% molten; otherwise, un-melted lumps will cause severe side-feed backing and vent-stuffing at the vacuum port.
The Optimization Strategy: Install large-pitch conveying elements (approx. 2D) directly beneath the side feed zone and extend them into the downstream mixing region. This creates a low-fill, high-velocity conveying channel that draws in additives smoothly.
The mixing section must balance dispersive and distributive forces. Once material enters the final discharge section, it must build pressure to push melt through the screen changer and pelletizing die.
High die backpressure expands the pressure-building zone backward. If this section grows too long, it shortens the available vacuum degassing zone and generates excessive shear heat as polymer slips through flight clearances.
The Optimization Strategy: Utilize single-flight screw elements in the pressure-building section. Single-flight elements offer superior pumping efficiency, drastically shortening the pressure-building length. This lowers melt temperature, extends screen changer mesh cycles, and keeps vacuum devolatilization operating stably.
Optimizing feeding, melting, side-feeding, and pressure-building zones allows compounding plants to unlock substantial hidden capacity from existing machinery. By pairing high-torque, high-speed machinery with modern specialized screw elements, you can achieve higher throughput without sacrificing melt quality.

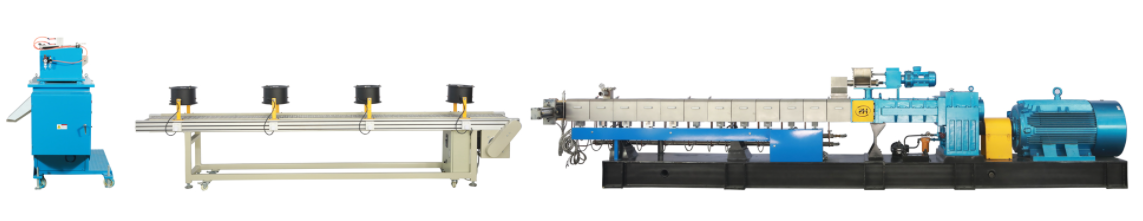

NANJING HAISI is professional manufacturer of Plastic Extruder Machine, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Extruder, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
