Color masterbatch is an engineered concentrate consisting of pigments, carrier resins, and specialized dispersants. It is the dominant coloring method in modern plastics processing. By encapsulates ultra-fine pigment particles inside a compatible carrier matrix, masterbatch delivers reliable color accuracy, uniform dispersion, and dust-free processing.
A high-performance color masterbatch formula relies on four fundamental ingredients:
Pigments (Colorants): Divided into organic and inorganic types. Organic pigments (e.g., Phthalocyanine Blue/Green, Azo Red) offer vibrant colors and high tinting strength. Inorganic pigments (e.g., Titanium Dioxide, Carbon Black, Iron Oxide) deliver superior thermal stability, lightfastness, and weatherability at lower costs.
Carrier Resin: The structural backbone of the pellet. To ensure ideal compatibility, specialized masterbatches utilize the same resin grade as the final target product (e.g., PE, PP, ABS). The Melt Flow Index (MFI) of the carrier must closely match or slightly exceed the target resin to ensure rapid melting and uniform distribution.
Dispersants: Chemical agents (most commonly PE wax or metallic stearates) that coat pigment agglomerates, lower surface tension, and prevent re-agglomeration during extrusion. Improper dispersant selection is the primary root cause of color specks and surface streaking.
Functional Additives: Optional ingredients such as UV stabilizers, antioxidants, anti-static agents, or optical brighteners. Unless explicitly requested, functional additives are minimized to avoid compatibility variables and unnecessary cost.
Manufacturing color masterbatch requires precise thermal control and aggressive mechanical shear. The process follows eight distinct steps:
Gravimetric Feeding: Raw pigments, resins, and waxes are precisely metered using loss-in-weight feeders to guarantee exact color concentration.

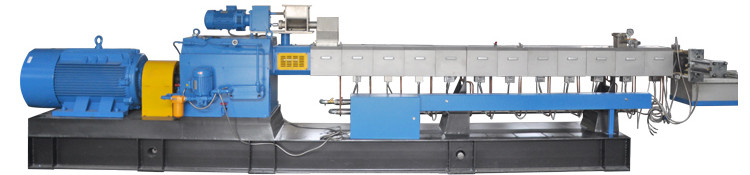

Melt Compounding: The mixture enters a high-torque industrial twin screw extruder. Under electric barrel heating and screw shear, the polymer melts while the screw elements break down pigment agglomerates. Screw element sequencing, temperature profiles, and RPM govern the final dispersion quality.
Strand Cooling: High-temperature melt strands exit the die face and enter a recirculating water bath or air-cooling conveyer to solidify.
Air Drying: High-velocity blowers remove surface moisture from the strands to prevent water spots and pellet clumping during cutting.

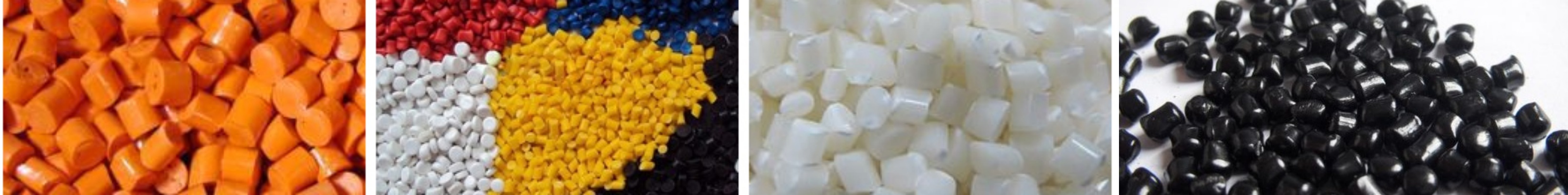

Pelletizing: Precision strand pelletizers cut the solid strands into uniform cylindrical or spherical grains, ensuring accurate dosing for end-users.
Vibratory Screening: Oversized strands, fines, and misshapen pellets are screened out to yield a consistent particle size distribution.
Homogenization: Horizontal batch mixers blend the production run to eliminate minor thermal or color variations across different time intervals.
Packaging: Automated packaging machines weigh, bag, and label the finished masterbatch with lot numbers, grade codes, and color specifications.
Preserved Polymer Properties: Processing color masterbatch directly during final molding avoids double thermal history, preserving resin molecular weight.
Streamlined Logistics: Eliminates secondary compounding steps for end-users, cutting energy costs and reducing inventory management.
Zero Dust Contamination: Enclosed pellets prevent airborne pigment dust, protecting operator health and maintaining a clean shop floor environment.
Masterbatches are classified by carrier type and target application:
By Carrier Type: PE Masterbatch (film and injection molding), PP Masterbatch (fibers, non-wovens, and automotive parts), ABS Masterbatch (engineering plastics, appliance housings), and PVC/EVA Masterbatches (cables, footwear, and specialized films).
By Application Level: Premium Injection Grade (cosmetic packaging, toys, requiring high gloss), Fiber Grade (the most demanding category, requiring sub-micron pigment dispersion to prevent fiber breakage during high-speed spinning), and Film Grade (ultra-thin blowing films requiring zero pinholes).
Superior Dispersion: Dedicated compounding equipment breaks down pigment agglomerates far better than dry-blending powders in a molding machine.
Batch Consistency: Uniform pellet sizing matches target resin granules, preventing segregation in the hopper and ensuring consistent color loading.
Ease of Handling: Simple cleaning protocols during color changes reduce machine downtime.
Carrier Compatibility Restrictions: Universal masterbatches designed to work across multiple resins often sacrifice physical properties or cause warp deformation due to carrier mismatch.
Higher Initial Cost: Machine processing costs make masterbatch more expensive per kilogram than raw pigment powder, though total operational costs are typically lower.
When color issues arise during molding, improper processing parameters or carrier mismatches are frequently to blame. Use this troubleshooting guide to resolve issues on the factory floor:
Causes: Insufficient barrel temperature in the mixing zone; low backpressure on the molding screw; poor pigment dispersion in the masterbatch.
Solutions: Increase barrel temperature near the feed throat; increase screw backpressure to enhance shear mixing; replace the masterbatch with a higher-dispersion grade if streaks persist.
Causes: Inferior dispersants or incompatible low-molecular-weight waxes in the masterbatch interfering with the polymer matrix.
Solutions: Switch to a masterbatch formulated with higher-grade dispersants or request a custom formulation matching the target resin grade.
Causes: Unverified pigment loading; inaccurate gravimetric dosing at the hopper; carrier MFI mismatch; excessive thermal dwell time causing thermal degradation.
Solutions: Verify dosing feeder calibration; check carrier resin compatibility; optimize barrel temperatures and cycle times.
Causes: Differences in machine wear, screw L/D ratios, or heater band contact causing variations in shear history and melt temperature.
Solutions: Standardize processing parameters across machines; recalibrate heating zones; perform small-batch color trials when moving molds to different presses.
Causes: Variations in baseline resin density, transparency, and MFI between different resin manufacturers.
Solutions: Fine-tune masterbatch dosing percentages to compensate for natural resin base hue shifts; perform compatibility trials before switching resin suppliers.
Explanation: High-concentration masterbatches (especially those containing organic dyes) may exhibit superficial surface bloom or migration during extended storage. This does not affect final part quality, as the pigment redistributes uniformly during melt processing.
Causes: Low nozzle temperatures; rough mold surface finish; extended molding cycle times; excessive Titanium Dioxide (TiO2) loading in white masterbatches; poor pigment dispersion.
Solutions: Increase nozzle and mold temperatures; polish mold cavity surfaces; re-balance masterbatch formulation parameters.
Causes: Use of low-grade pigments with poor heat resistance or insufficient UV/weatherability ratings for outdoor exposure.
Solutions: Specify outdoor-grade pigments with high lightfastness ratings (Blue Wool Scale 7-8); request accelerated weathering test data from the masterbatch manufacturer.
Causes: Inherent lot-to-lot baseline color variation in raw ABS resins.
Solutions: Lock in specific ABS resin grades and suppliers; establish baseline color tolerance standards; request lot-specific masterbatch adjustments from your supplier when raw resin base shades shift.
Optimizing color masterbatch production requires high-torque machinery, engineered screw geometries, and precise thermal control. Operating a specialized color masterbatch compounding machine or plastic pelletizing line allows compounding plants to achieve sub-micron pigment dispersion and consistent pellet geometry.
For custom screw configurations, high-dispersion compounding machinery, or technical support on masterbatch production lines, contact the engineering experts at Nanjing Haisi Extrusion Equipment.
