Pellet defects in an underwater pelletizing system usually manifest in six distinct ways: burrs, flattened shapes, inconsistent sizing, agglomerated strands, tangled feed guides, or sudden strand breakage.
While each fault stems from a different root cause, they share a common denominator: the equipment isn't broken; a parameter is simply misaligned.
To streamline your troubleshooting process, use this prioritized diagnostic checklist. Always check in the specified order to pinpoint the exact root cause before replacing expensive hardware.
Symptom: The edges of the cut pellets are rough, featuring small protrusions or trailing strings.
Step 1: Inspect the Cutter Blades. Over time, blades dull, losing their razor-sharp edge and failing to shear cleanly. Action: Swap in a standby cutter head and send the worn blades out for professional resharpening.
Step 2: Check Water Temperatures. Inconsistent temperatures or incorrect flow rates across the quench, spray, and transport water reduce cooling efficiency, resulting in unclean cuts. Action: Fine-tune water temperatures relative to ambient shop floor conditions.
Step 3: Verify Blade-to-Die Clearance. If the mechanical clearance between the rotating cutter blades and the stationary die face is too wide, the polymer isn't sheared cleanly. Action: Carefully decrease the blade clearance gap.
Diagnostic Priority: Cutter Blades -> Water Temperature -> Blade Clearance.
Symptom: Cut pellets lose their uniform cylindrical or spherical shape, appearing compressed or flat.
Step 1: Check Pull-Roll Gap. If the mechanical gap between the two traction rolls is set too tight, the soft polymer strands get crushed. Action: Readjust the roll clearance to the optimal process specification.
Step 2: Calibrate Infeed Speed. Incorrect pull-roll hauling speed—either too fast or too slow—deforms the grain geometry. Action: Take a sample batch, weigh 100 pellets to verify specific mass, and adjust haul speed accordingly.
Diagnostic Priority: Pull-Roll Gap -> Infeed Speed.
Symptom: A single production batch contains wild variations in pellet size and irregular, non-uniform geometries.
Step 1: Check Melt Supply Volume. Insufficient melt output from the die head creates starved conditions, destabilizing the pelletizing action. Action: Slightly increase gear pump speed and system load.
Step 2: Evaluate Extrusion Pressure. Fluctuating die head pressure causes erratic output, yielding uneven pellets. Action: Monitor and stabilize gear pump load.
Step 3: Check Pull-Roll Air Pressure. Insufficient pneumatic clamping pressure prevents the rolls from gripping the strands tightly, causing slippage during traction. Action: Inspect your air supply line and restore pressure to specifications.
Step 4: Calibrate Infeed Speed. As with flattened pellets, incorrect hauling speed directly impacts uniform sizing. Action: Sample, weigh, and adjust.
Diagnostic Priority: Melt Supply -> Extrusion Pressure -> Pull-Roll Air Pressure -> Infeed Speed.
Symptom: Two or more polymer strands stick together before reaching the cutter, resulting in fused, multi-pellet agglomerates.
Step 1: Inspect the Guide Plate (Trough). Strands drifting off-center along the guide plate collide and fuse together. Action: Closely monitor guide plate alignment and manually guide stray strands back to their proper tracks.
Step 2: Check Pull-Roll Parallelism. If the two traction rolls are out of parallel, uneven pressure is applied across the strands, causing them to wander and merge. Action: Adjust roll alignment to ensure absolute parallelism.
Step 3: Verify Transport Water Flow. Insufficient transport water flow fails to rapidly cool and separate freshly cut pellets, allowing them to stick together in the slurry line. Action: Increase water volume to the required flow rate.
Diagnostic Priority: Guide Plate -> Pull-Roll Parallelism -> Transport Water Flow.
Symptom: Strands fail to run straight along the guide plate, weaving crookedly and tangling together.
Step 1: Inspect Overflow and Spray Water. Excessive water flow rates pound the strands physically, knocking them off their tracking grooves. Action: Throttle back water flow.
Step 2: Check Infeed Speed. If haul-off speed is too slow, traction friction drops, causing strands to slip and wander on the guide plate. Action: Increase haul-off RPM.
Step 3: Verify Pull-Roll Gap and Pressure. Excessive clearance or weak pneumatic clamping fails to secure the strands, leading to erratic movement. Action: Adjust gap and verify pneumatic pressure.
Step 4: Check Die Head Alignment. If the die head extrusion orifices are physically misaligned with the guide plate tracks, strands exit crookedly. Action: Install a backup die head and re-align alignment dowels.
Diagnostic Priority: Overflow/Spray Water -> Infeed Speed -> Roll Gap/Pressure -> Die Head Alignment.
Symptom: Strands snap abruptly during active production.
Step 1: Check Extrusion Pressure Stability. Fluctuating die pressure causes surging flow rates, subjecting the strands to uneven tensile stress. Action: Increase pump load and stabilize pressure.
Step 2: Inspect for Gas Entrapment. Internal bubbles or moisture pockets weaken strand tensile strength, causing them to snap under tension. Action: Verify that your upstream vacuum degassing system is operating correctly.
Step 3: Verify Infeed Speed. If pull-rolls haul material faster than the die head extrudes it, the strands are mechanically stretched and snapped. Action: Reduce haul-off speed to perfectly match extrusion throughput.
Diagnostic Priority: Extrusion Pressure -> Gas Entrapment -> Infeed Speed.

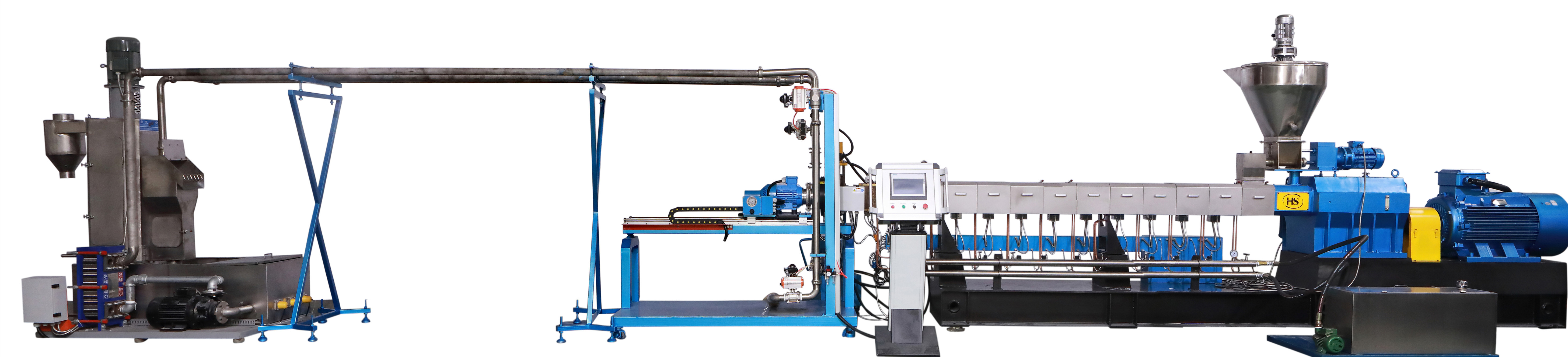

Most operational anomalies in an underwater pelletizing system or downstream plastic pelletizing machine are parameter-driven rather than mechanical failures. By methodically working through this prioritized checklist, your operators can resolve most issues within minutes.
If you have exhausted this checklist and problems persist, you are likely facing hardware fatigue—such as severely worn blades, scarred die plates, or aging hydraulic components. At that stage, professional maintenance or OEM part replacement is required.
