Key Factors Determining The Quality of Black Masterbatch

1. High Dispersion Quality
Black masterbatch is made using carbon black, a notoriously difficult and messy material to handle. It is dusty, lightweight, and fluffy, making it hard to manage without large-scale processing, as it can easily contaminate machines and the working environment.

To address this, manufacturers commonly pre-disperse carbon black in a clean, free-flowing resin carrier—creating black masterbatch. However, carbon black is inherently difficult to disperse. Direct melting during injection molding results in poor color performance, with streaks and spots visibly standing out against lighter-colored areas. Standard injection molding machines cannot effectively disperse raw carbon black.

This issue also affects masterbatch producers. High-loading black masterbatch produced using single- or twin-screw extruders often lacks good dispersion. When used in molding processes, it performs only slightly better than raw carbon black and still yields unsatisfactory results.

To achieve stable and high dispersion, advanced high-shear kneading machines like FCM or BANBURY mixers must be used. These machines apply sufficient force to mix carbon black thoroughly with base resins. The type of carbon black used also affects dispersion; the finer the particles, the more difficult the dispersion.

Film production, in particular, demands excellent dispersion. Poorly dispersed masterbatch results in visible defects at the film's edges and significantly reduces weather resistance. In the fiber industry, high-dispersion micro-particles are critical for producing ropes, yarns, carpets, and more. Machines producing up to 30,000 fibers at speeds over 5,000 meters per minute will suffer severe downtime if poor dispersion causes fiber breakage.

2. Strong Coverage Ability
The second factor in determining black masterbatch quality is its covering power, especially important when coloring recycled or waste polymers. In such cases, black masterbatch must mask the underlying colors. Large-particle carbon black has poor coloring power and may not cover underlying hues effectively, leading to off-color final products. Choosing carbon black with high tinting strength is essential to ensure proper color coverage during melting—this property is known as coverage ability.

3. Good Flowability
The third factor is rheology and flowability. Even if a masterbatch has excellent dispersion, poor flow properties can prevent it from mixing effectively with the base material, resulting in subpar molding performance.

Masterbatch base resins typically have high rheological properties. However, to reduce costs, some manufacturers use recycled or reused materials as carriers, significantly reducing flowability. Poor rheology can cause problems in cycle time and appearance for molders.

Some end-users may try to compensate for poor dispersion and flow by increasing the masterbatch dosage. However, this only increases production costs. A high-quality masterbatch should achieve uniform, well-dispersed black color with minimal dilution ratio.

4. High Compatibility
Compatibility is the fourth key factor. If a masterbatch is produced from scrap or recycled materials, it may contain contaminants or incompatible polymers. This leads to unpredictable and hard-to-control issues, wasting time and materials for end-users.

Using virgin base resin ensures high-quality masterbatch with excellent compatibility during melting. Premium masterbatches can be made using LLDPE, LDPE, HDPE, PP, PS, SAN, PA, and other materials. Engineering-grade masterbatches with strict physical performance standards are also available.

Several major international masterbatch manufacturers are developing so-called "universal" black masterbatches. These are designed to be compatible with a wide range of base materials, offering excellent rheology and broad application flexibility.

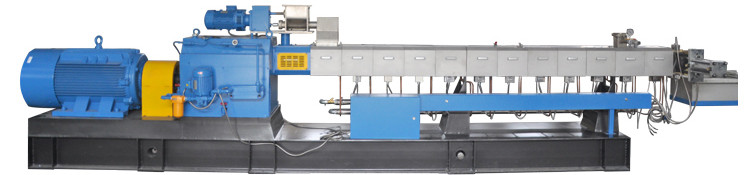

NANJING HAISI is professional manufacturer of Black Masterbatch extruder, we supply Twin Screw Extrusion Line, Single Screw Extrusion Line, Plastic Recycling Extrusion Line, Two Stage Extrusion Line, Lab Scale Extrusion Line, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
